Williams Hardware/Software Info

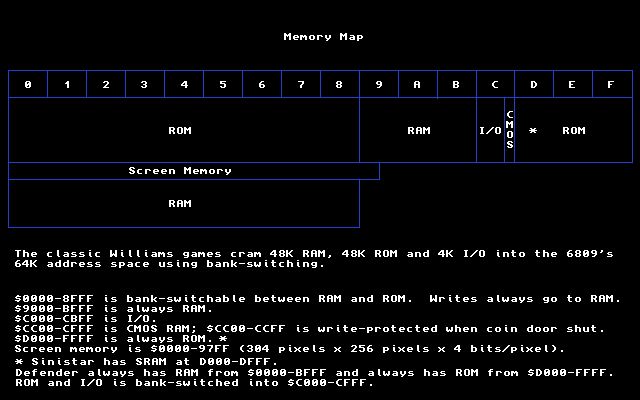

Memory map

Williams hardware description

Hardware differences between games

ROM differences between game versions

Hidden message in games

Joust Pterodactyl bug

Listing of Joust waves

Joust Instruction Manual

Listing of Robotron enemies by wave


Williams Conversion articles from me

MultiGame II information

Multigame conversion article (incomplete)

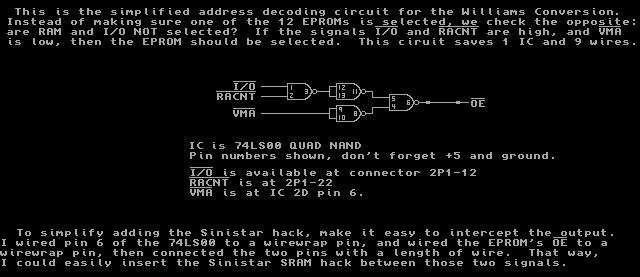

Pic of Multi-Game ROM address decode circuit

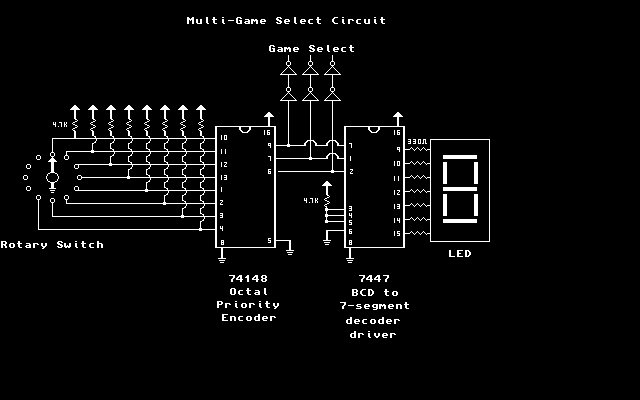

Pic of my Multi-Game selector circuit

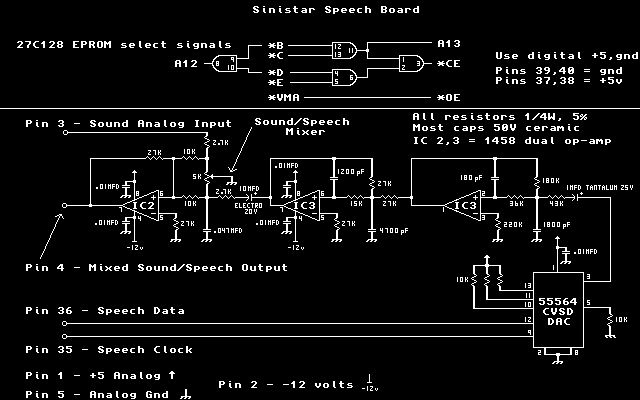

Pic of my Sinistar Speech board EPROM hack

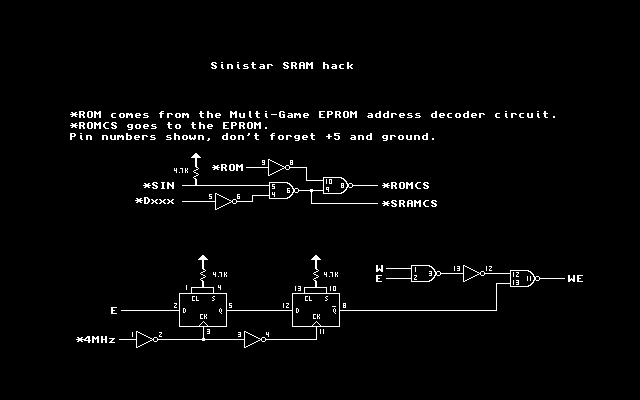

Pic of my Sinistar SRAM hack (9/30/95)

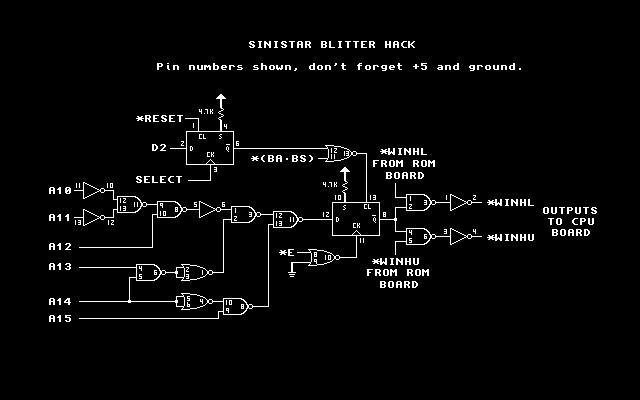

Pic of my Sinistar Blitter hack

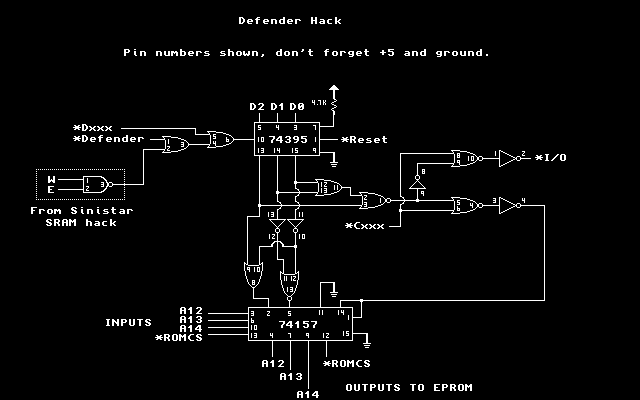

Pic of my Defender hack circuit(3/19/95)

Defender patches for Multi-Game

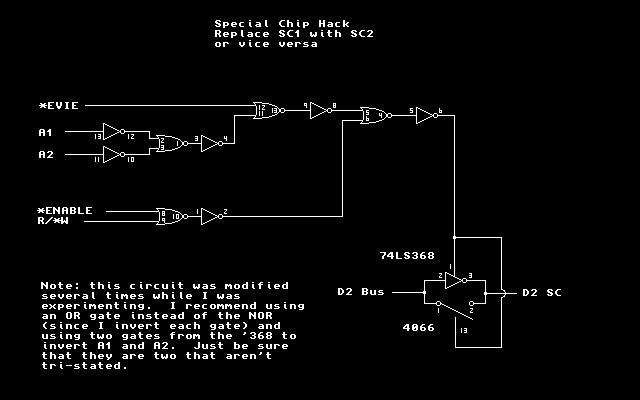

Special Chip hack to switch SC1/SC2 (9/30/95)

Note: this hack can be used to run Splat with SC1s, without having to patch the ROM image.

Here's a better approach using a GAL

Parallel Port Hack

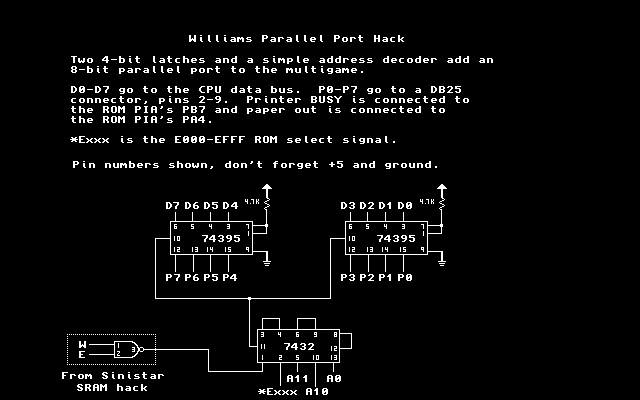

I added two 4-bit latches and an OR gate for address decoding to my Multi-Game machine, producing an 8-bit parallel port. I wrote 6809 code to dump RAM using a simple handshaking protocol to my Amiga at over 5K/sec. I've used it to grab pictures that are hard to get from the ROM images (such as the complete image of the Sinistar). I've also posted RAM dumps to help people disassemble code by showing what's in RAM. I also use the parallel port to select the ROM image to run. See the code and disassembler file here.
