X-Men Project X LCD game

X-Men Project X used a Sharp SM-510 MCU (die ID MD3)

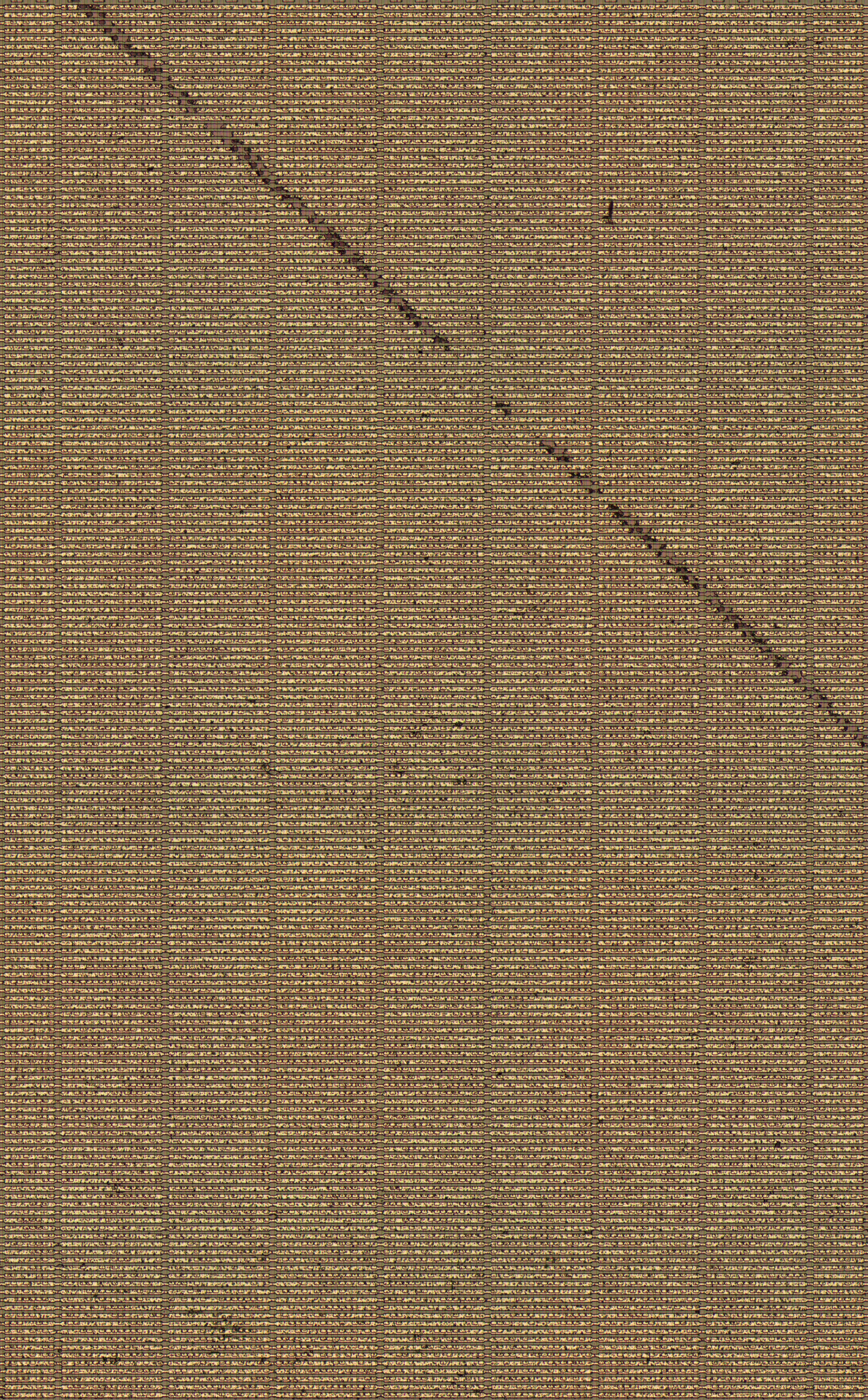

ROM array

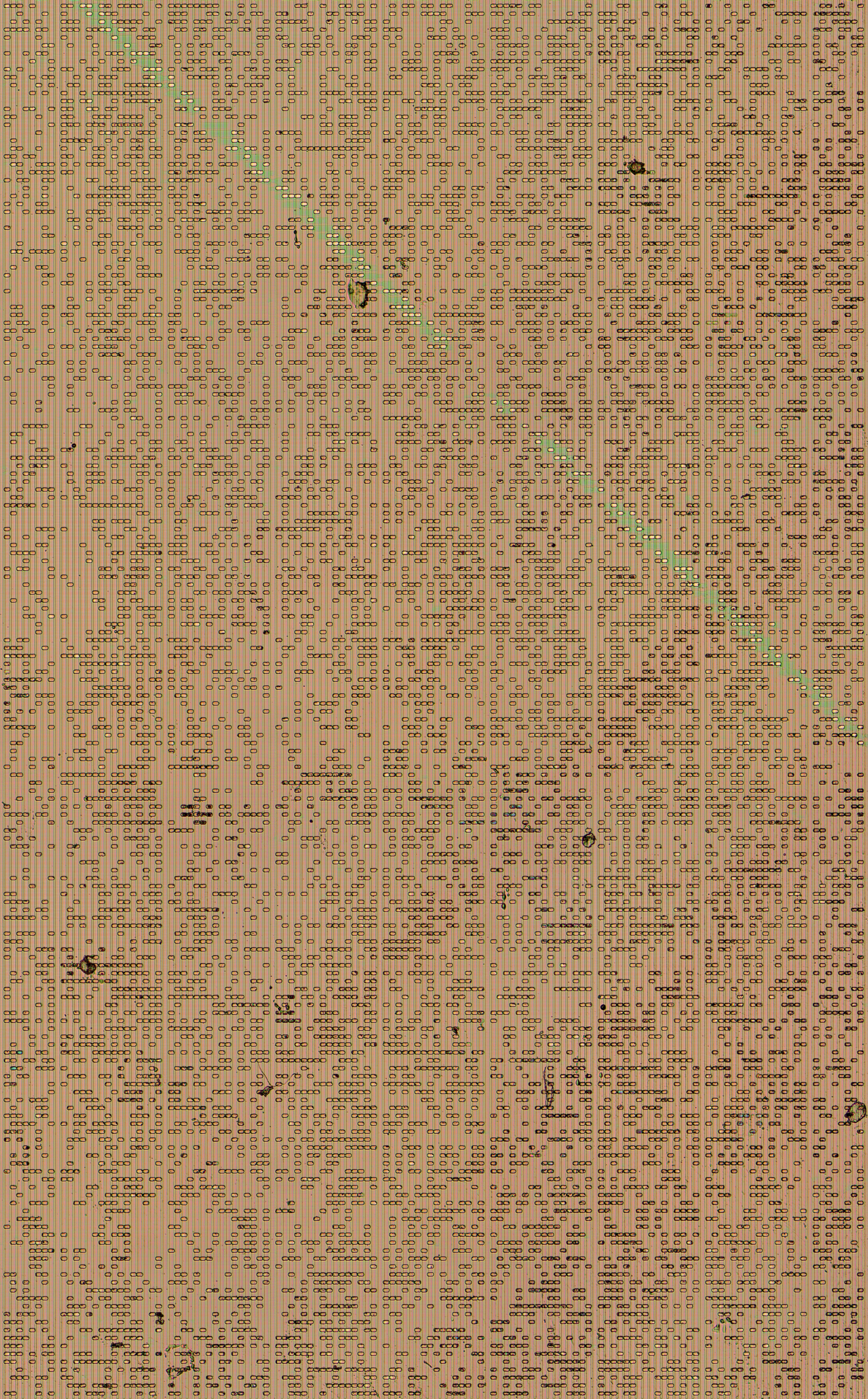

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1     --         --         Up          --        --        --
S2     --         R          L           --        --        --
S3     --        Pick        --          --        --        --
S4    Jump       Move        --          --        --        --
S5     --         --         --          --        --        --
S6   Pause        --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
