Vindicators LCD game

Vindicators used a Sharp SM-510 MCU (die ID 595)

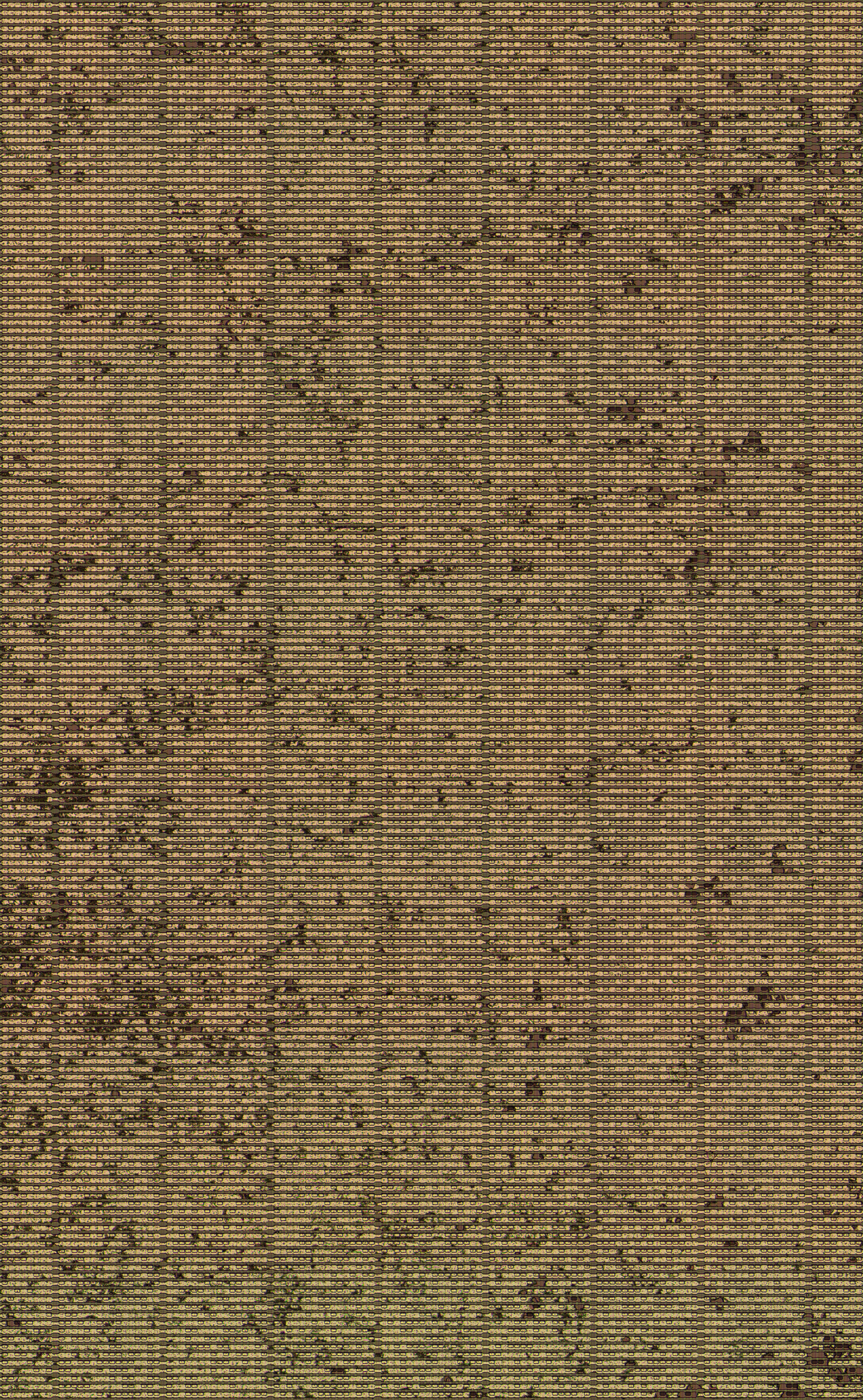

ROM array

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1     --         --         Up          --        --        --
S2     --       Right       Left         --        --        --
S4     --       Gun R        --          --        --        --
S5    Fire      Gun L        --          --        --        --
S6  Max Score     --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
