Touch & Tell


There are 2 28-pin SDIPs and a 16-pin DIP on the PCB: CD8012NL M GU 8922 4924 PHILIPPINES, CD2802NL M FU 8922 4624 PHILIPPINES, and CD2610NL MBDW 8922 4739 PHILIPPINES (a VSM).


CD8012 is a TMS1100G microcontroller. The die is labeled CD8012.

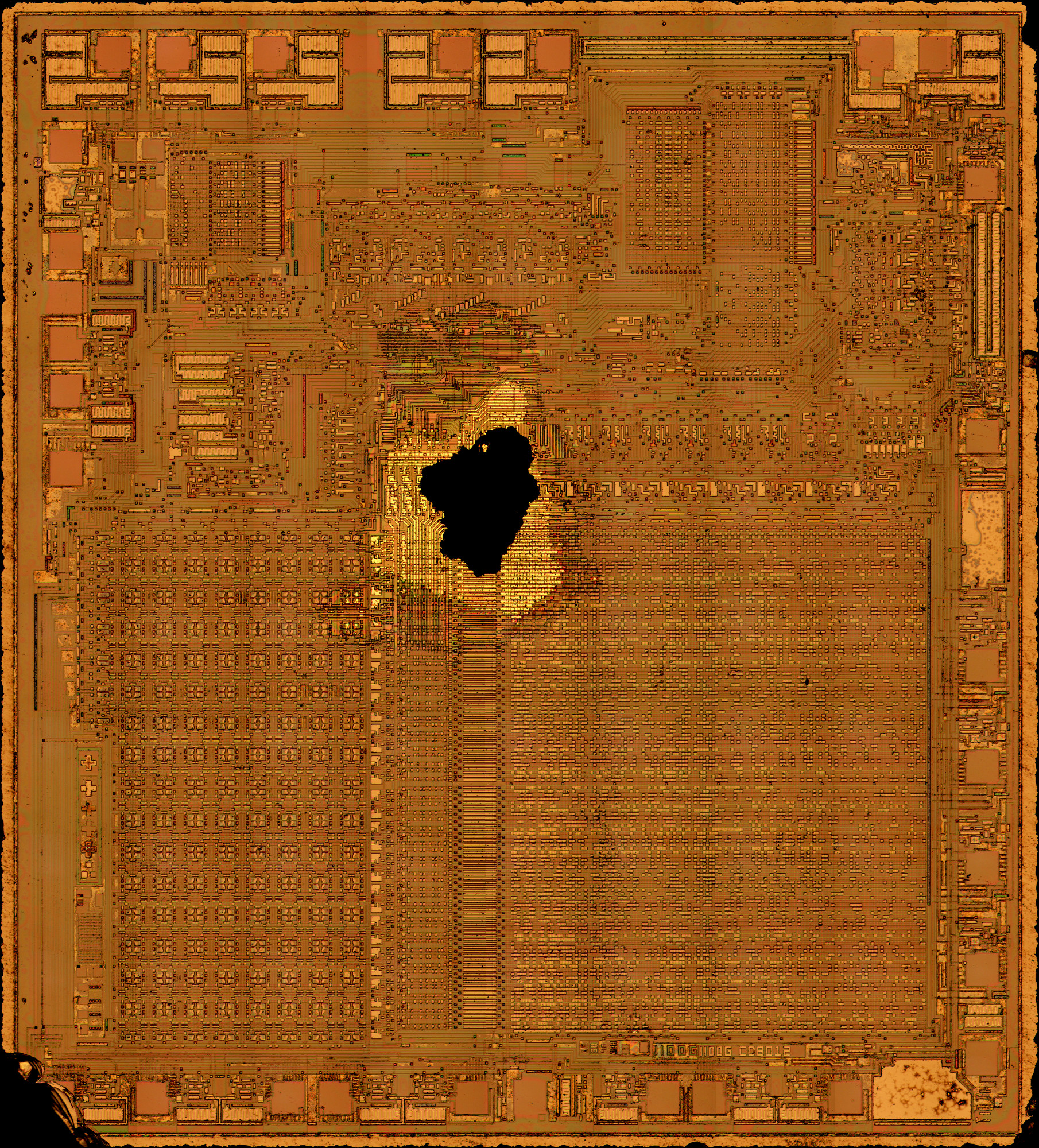

CD8012 die

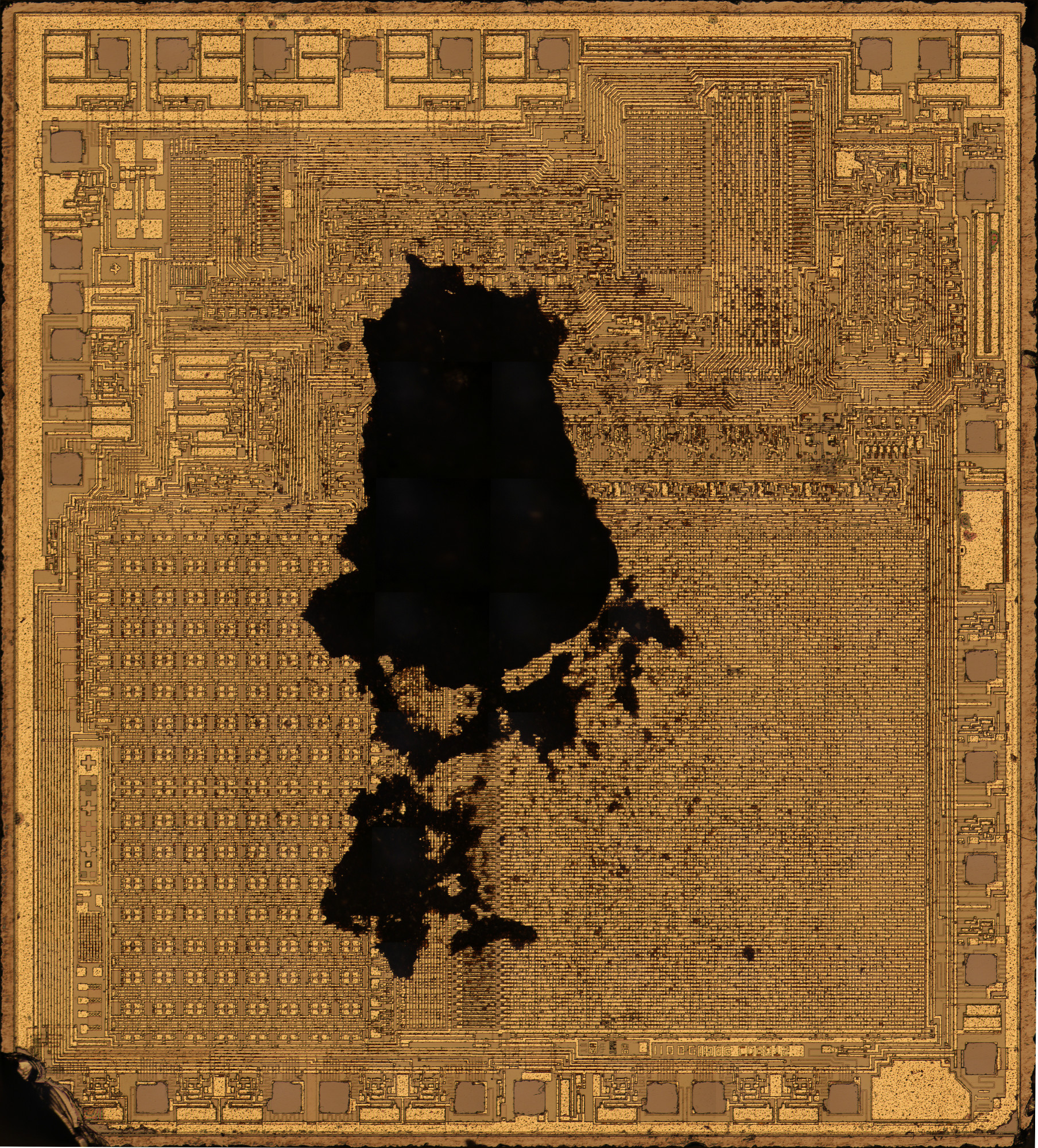

CD8012 die with top metal removed

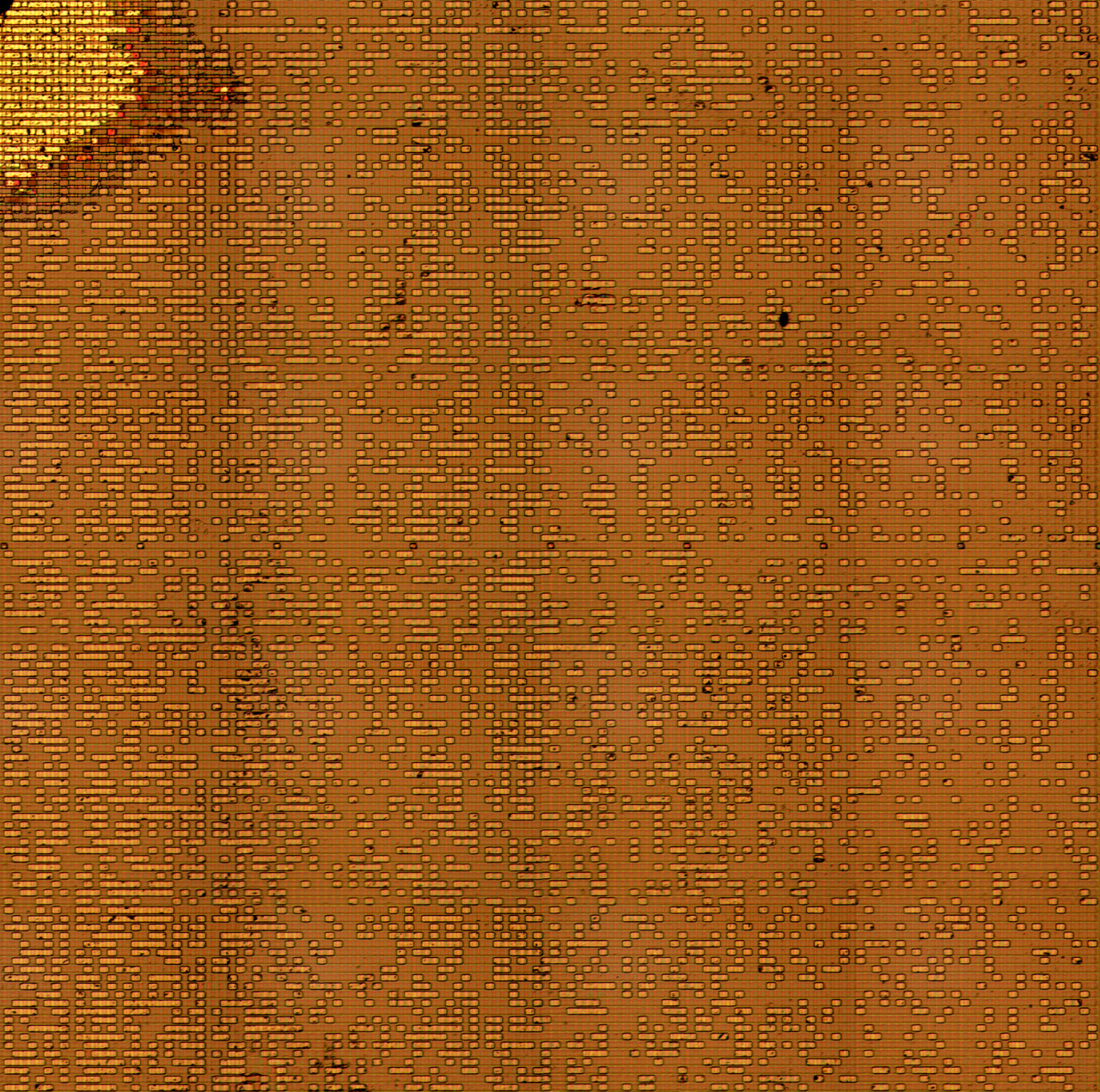

CD8012 ROM array

CD8012 raw ROM dump

CD8012 ROM dump


CD2802NL is a voice synthesis processor. The die is labeled T0280F 0281D.

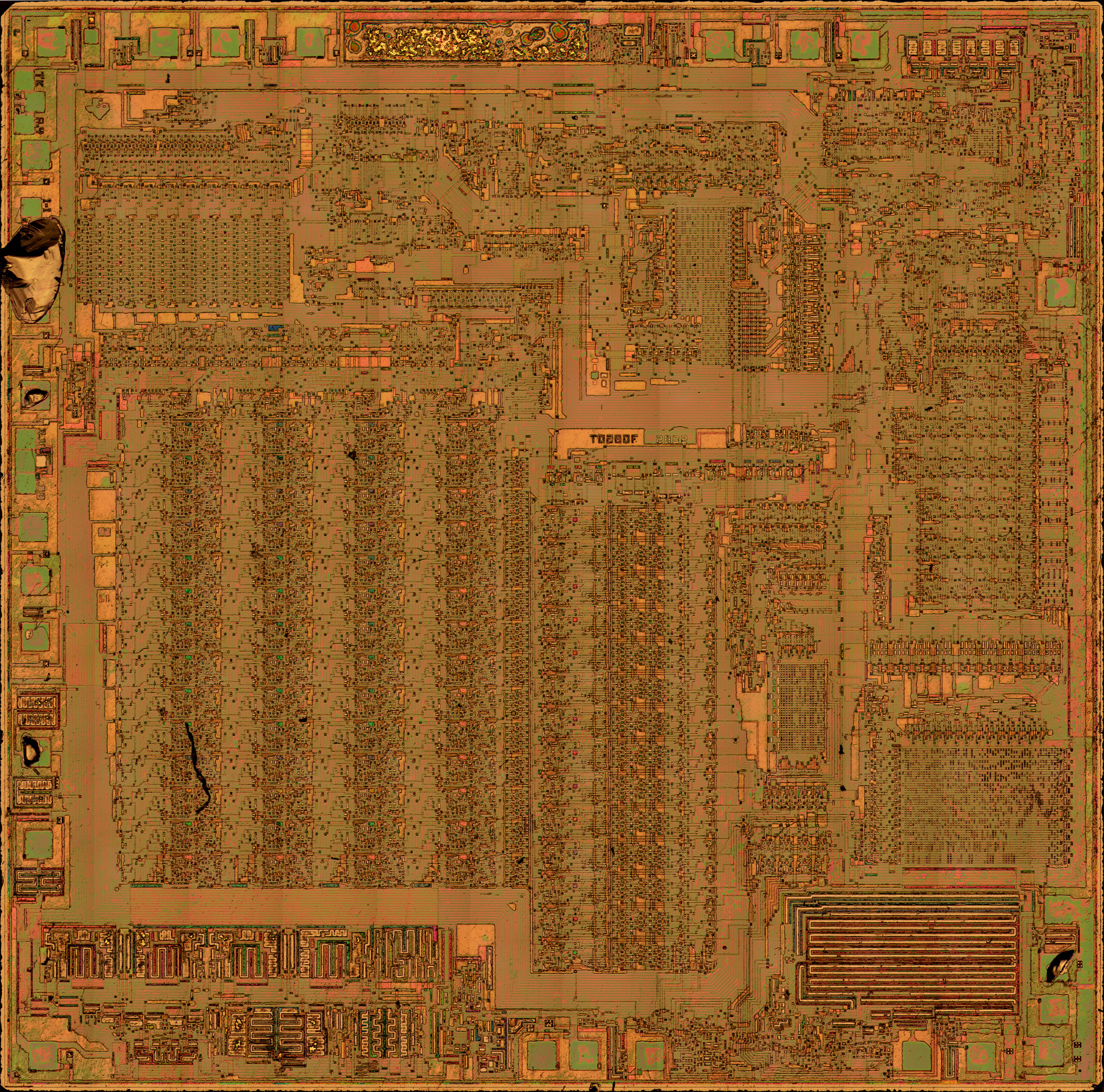

CD2802 die

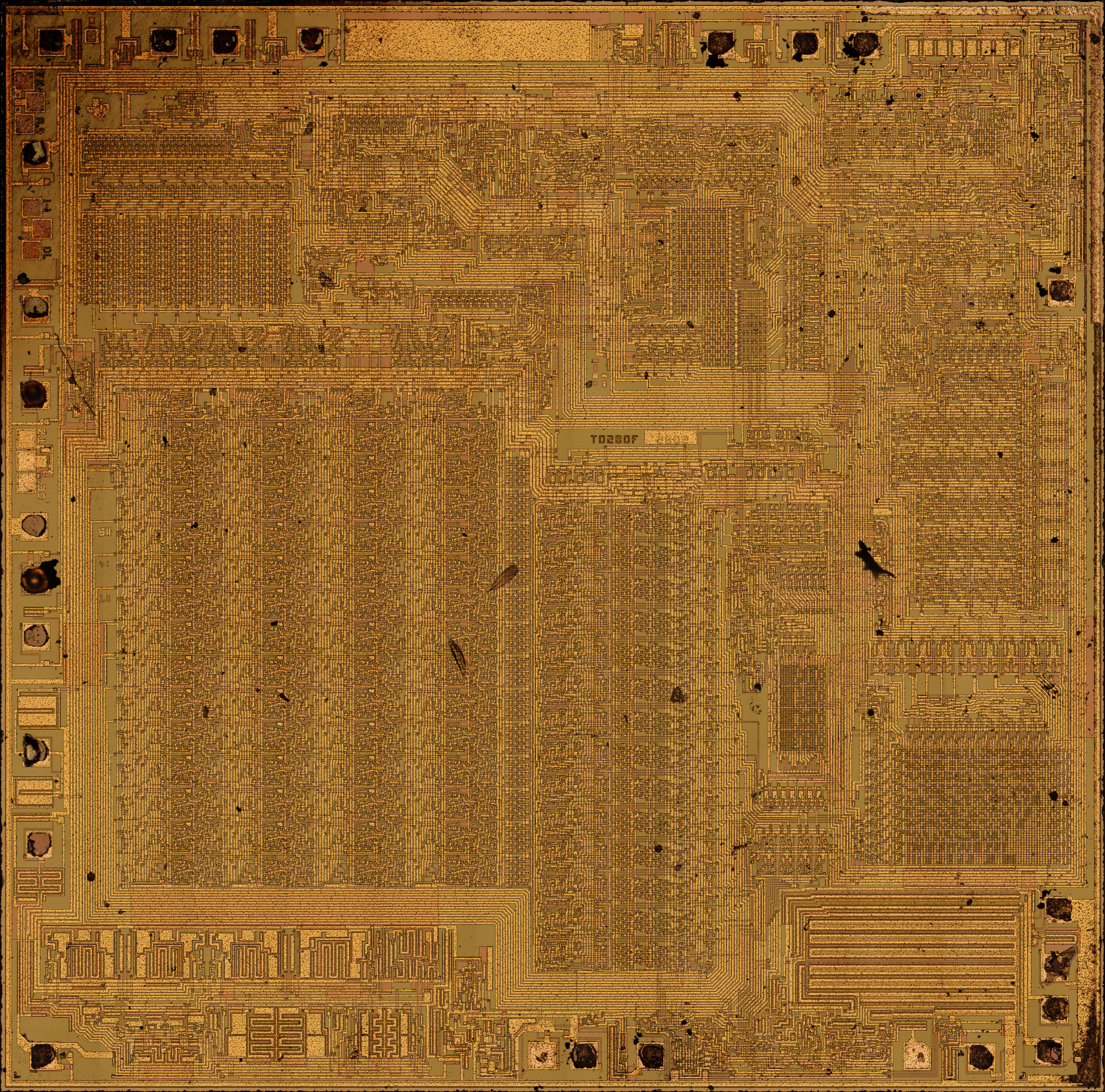

CD2802 die with top metal removed


CD2610NL is a voice synthesis memory. The die is labeled T0355D 2610B.

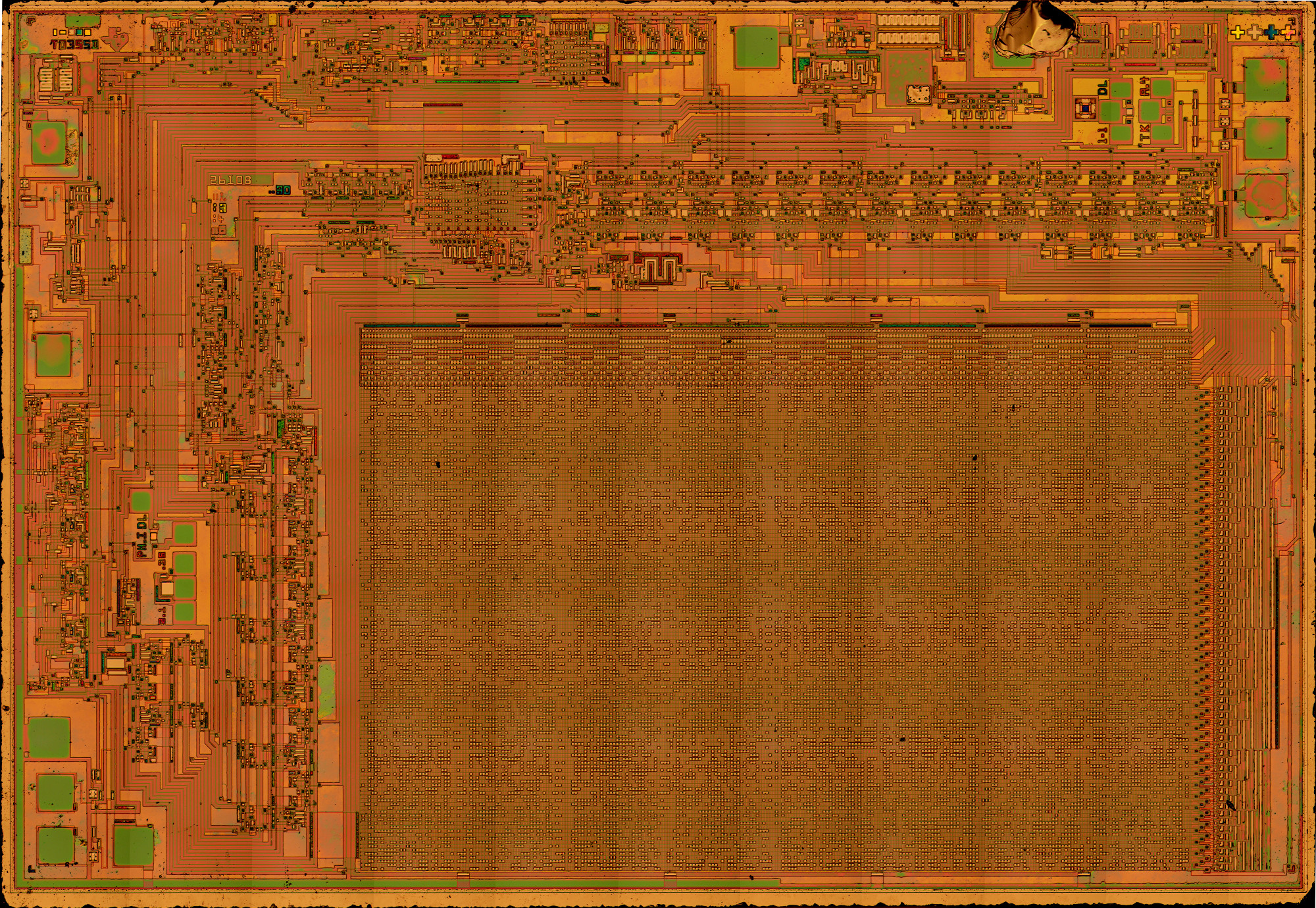

CD2610 die

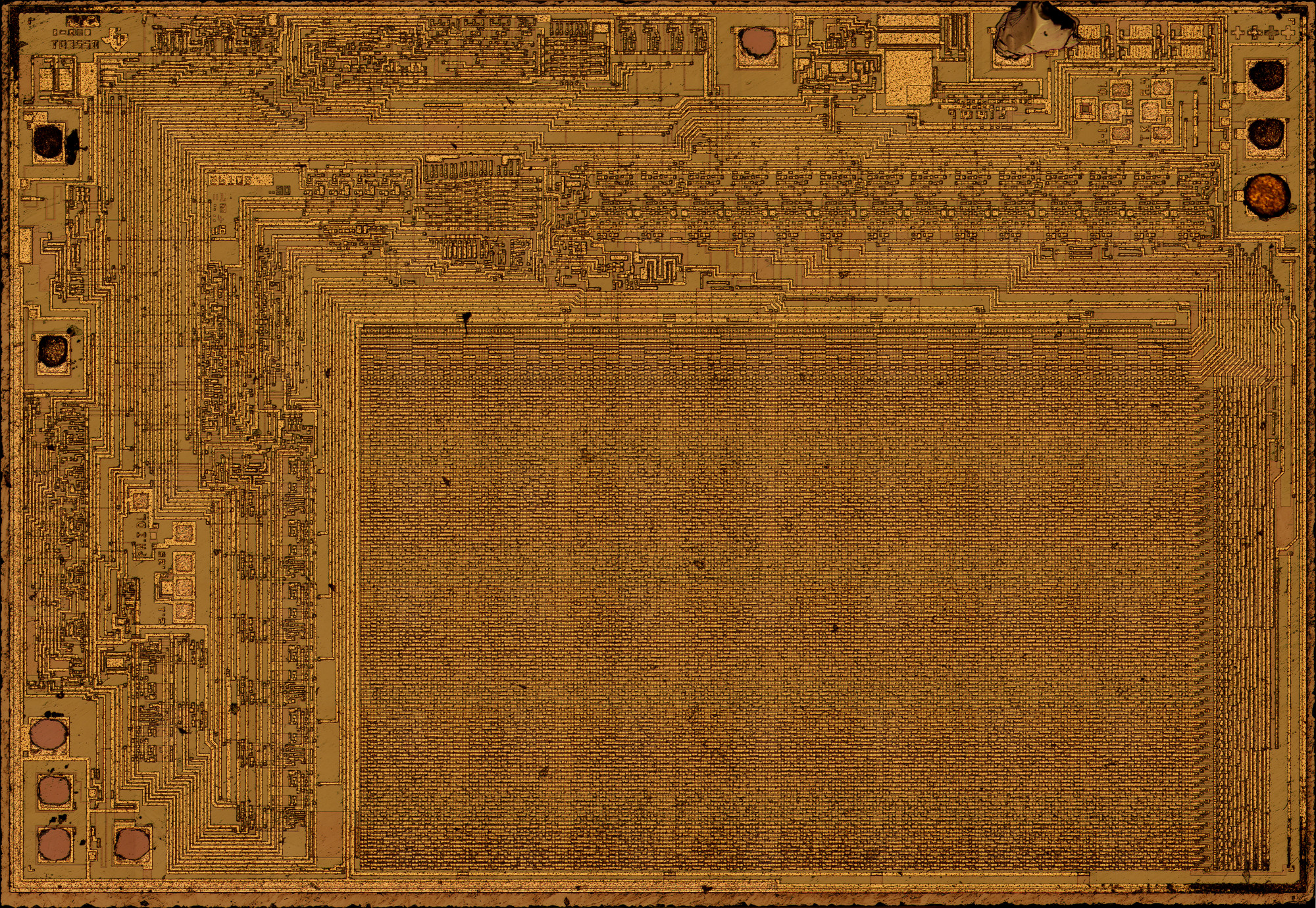

CD2610 die with top metal removed

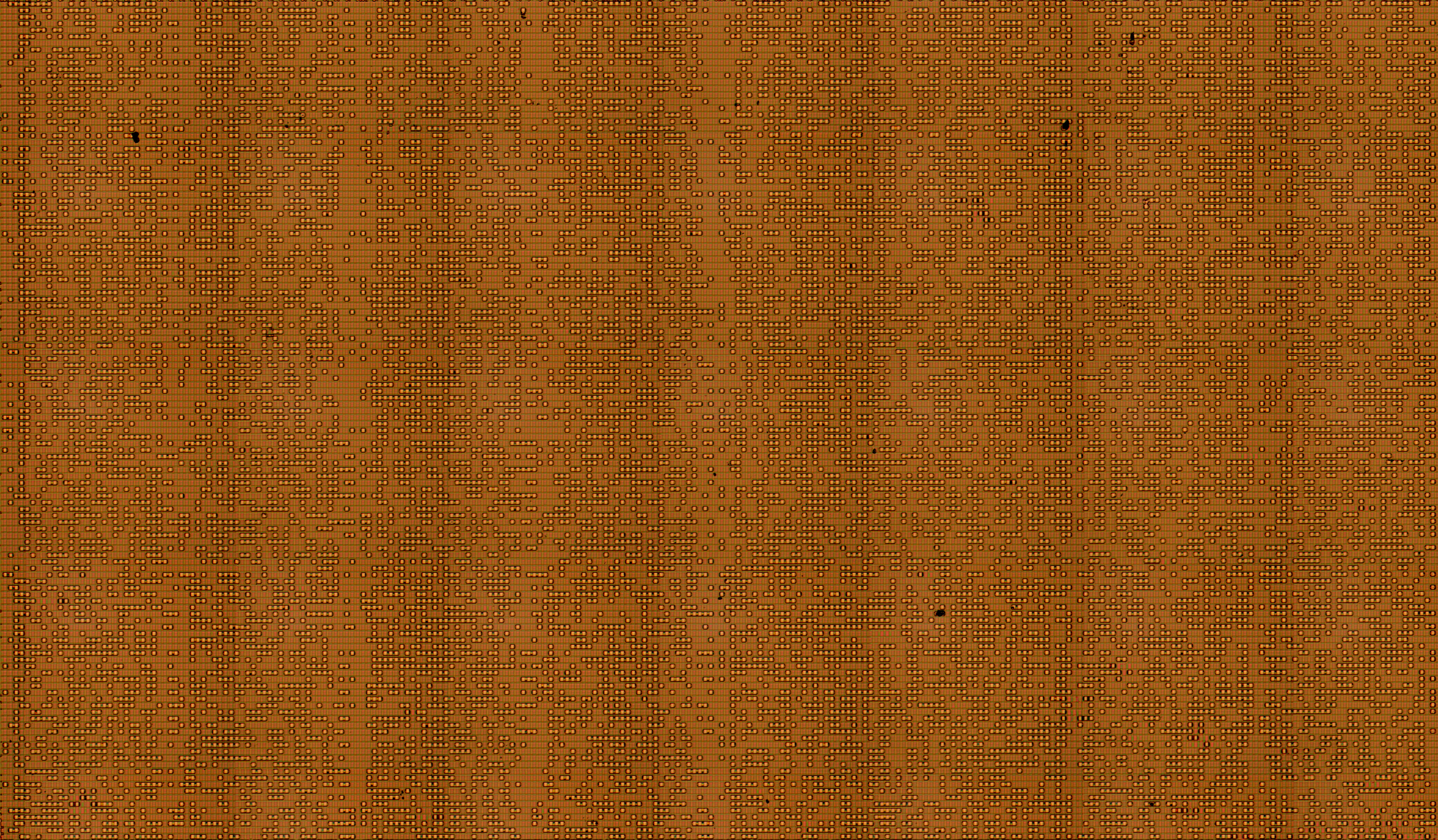

CD2610 ROM array with top metal removed


Touch & Tell info from Datamath
