Swamp Thing LCD game

Swamp Thing used a Sharp SM-510 MCU (die ID MB0)

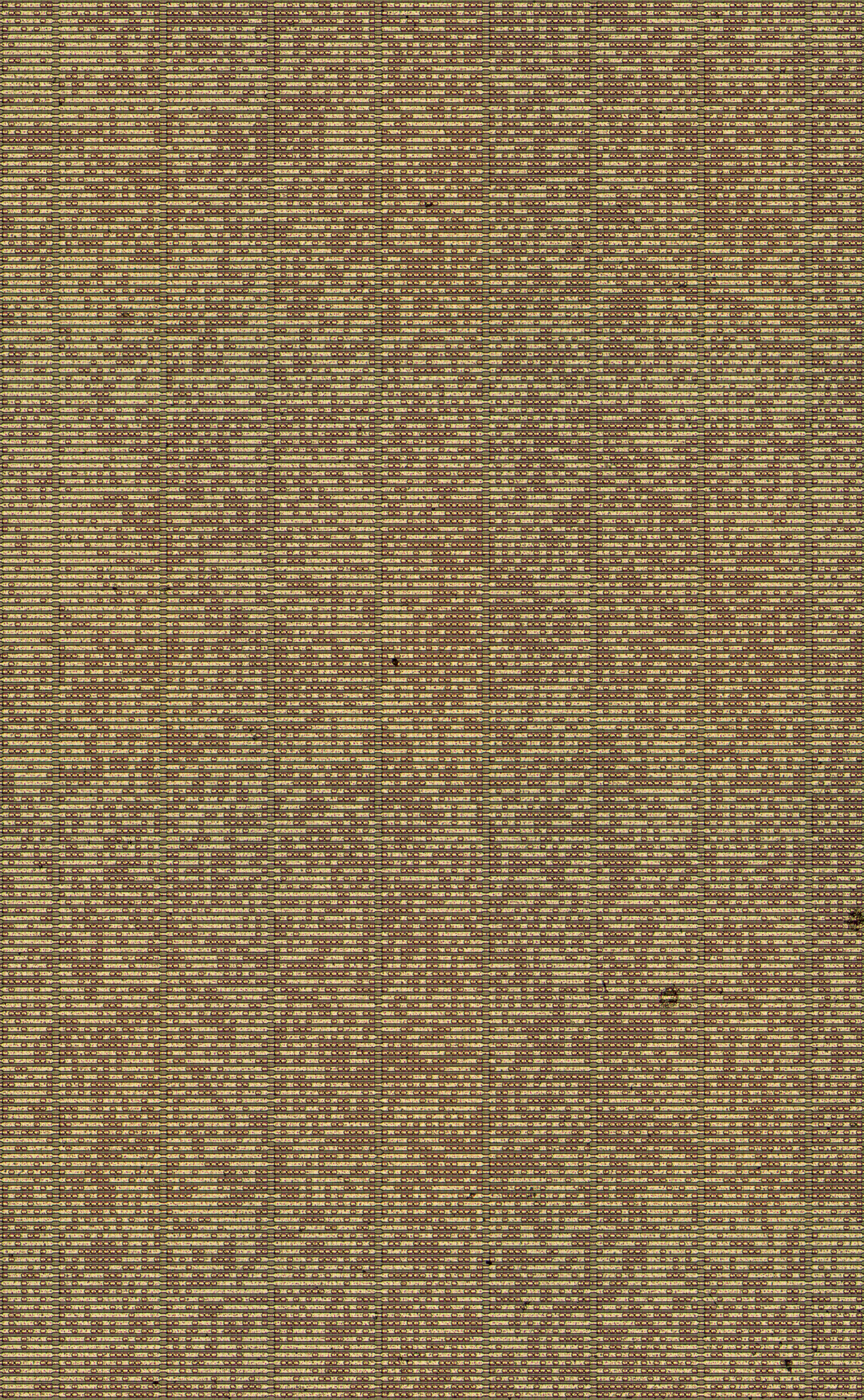

ROM array

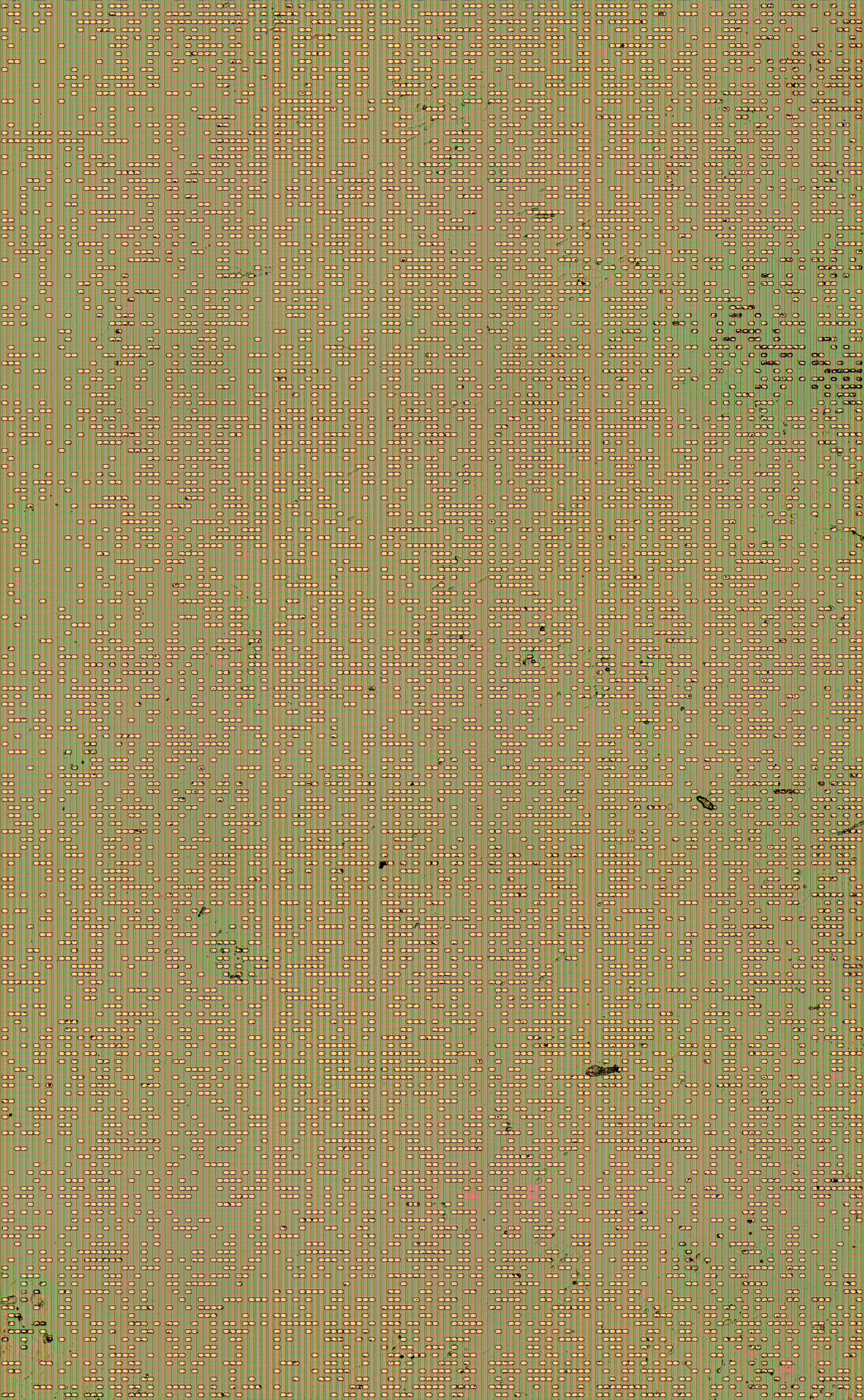

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
        K1         K2          K3        K4       Beta       BA
S1      --         --          Up        --        --        --
S2      --       Right        Left       --        --        --
S3      --        Down         --        --        --        --
S4    Punch      Throw         --        --        --        --
S5    Pause        --          --        --        --        --
S6      --         --          --        --        --        --
GND     --         --          --        On        --        --
VDD     --         --          --        --       Off      Sound
