Super Double Dragon LCD game

Super Double Dragon used a Sharp SM-510 MCU (die ID MF5)

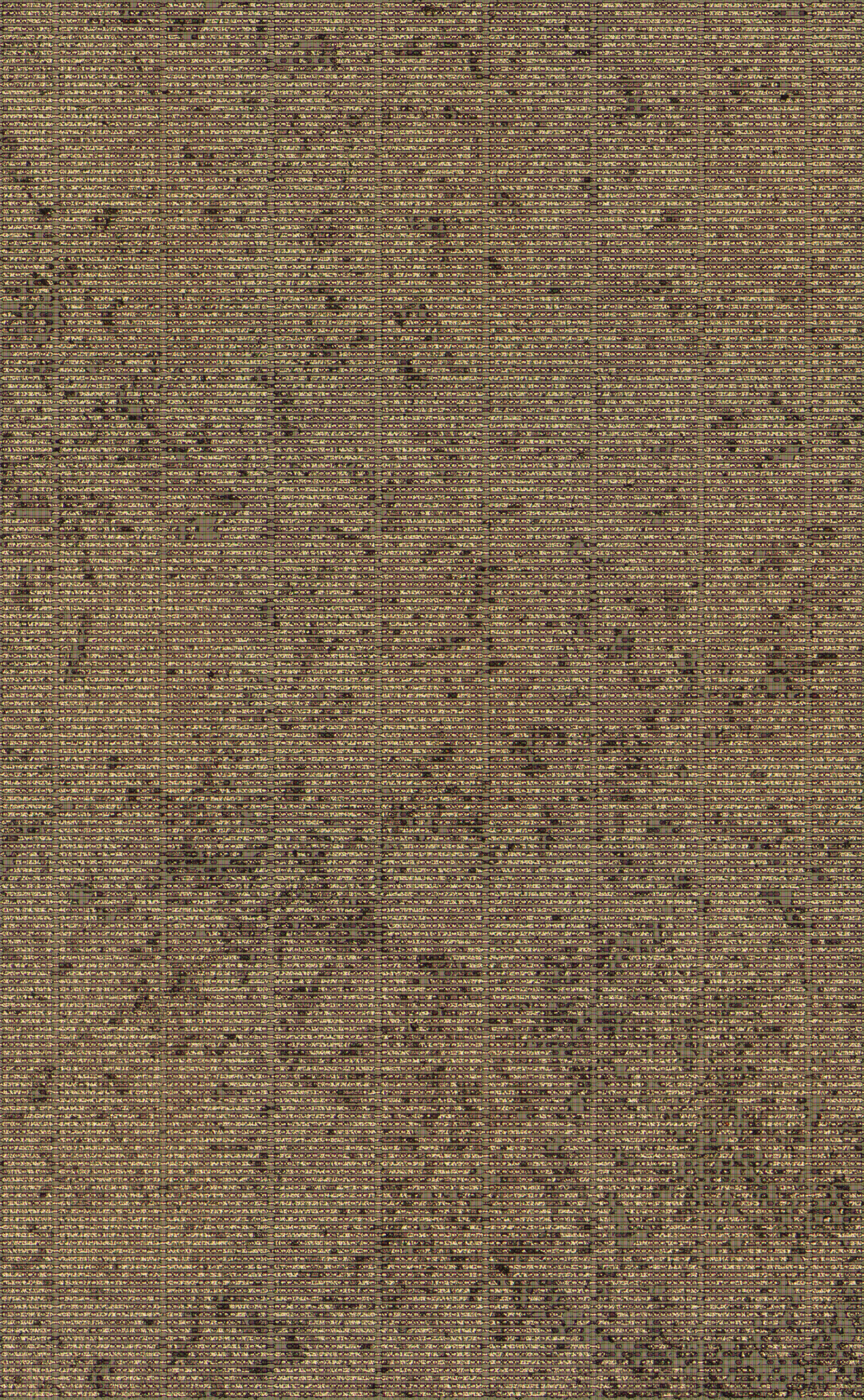

ROM array

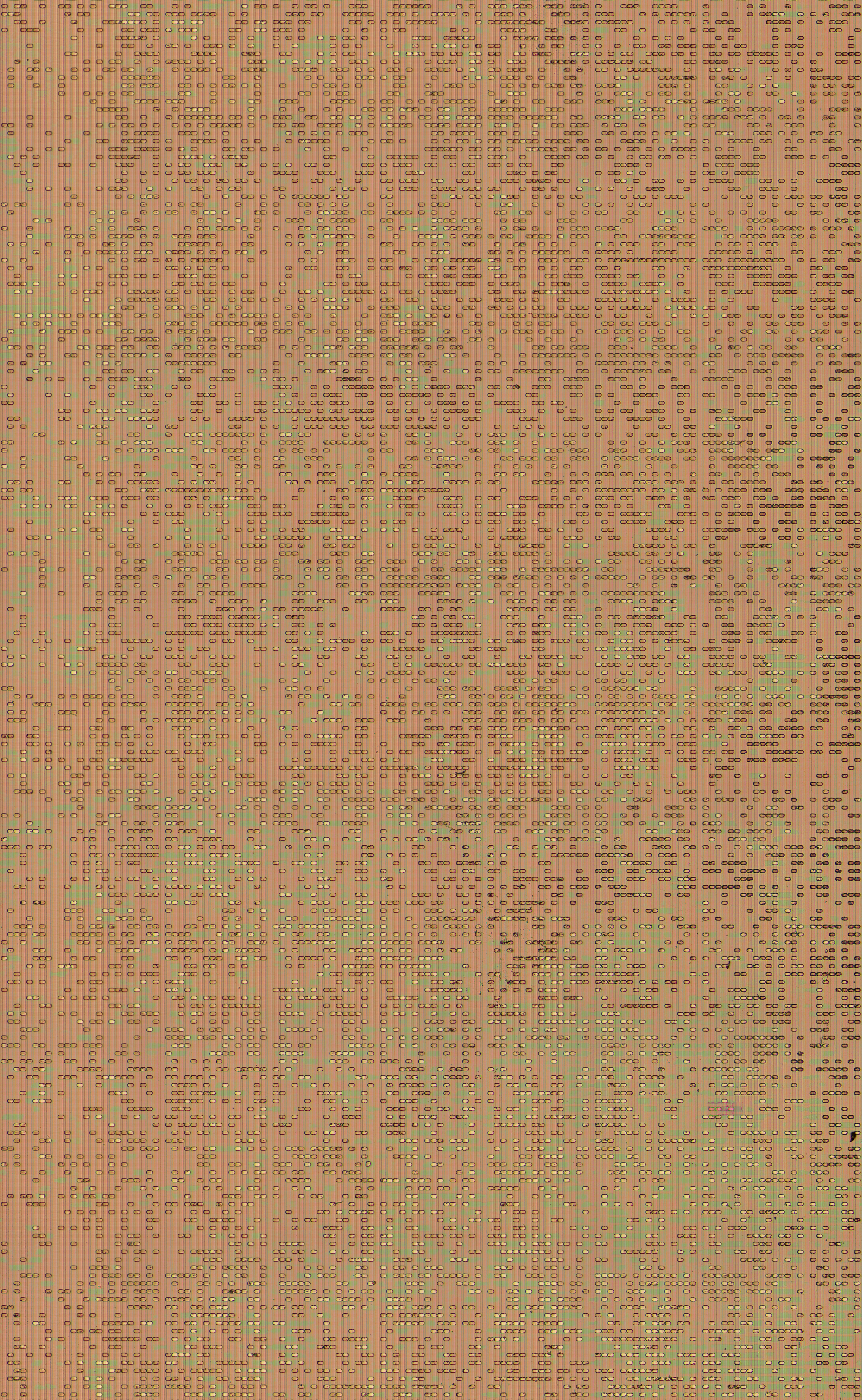

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1   Kick L       --         Up          --        --        --
S2     --       Right       Left         --        --        --
S3     --        Down        --          --        --        --
S4     --      Special       --          --        --        --
S5   Kick R     Punch        --          --        --        --
S6   Select       --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
