Operation Aliens LCD game

Operation Aliens used a Sharp SM-510 MCU (die ID MJ1)

ROM array

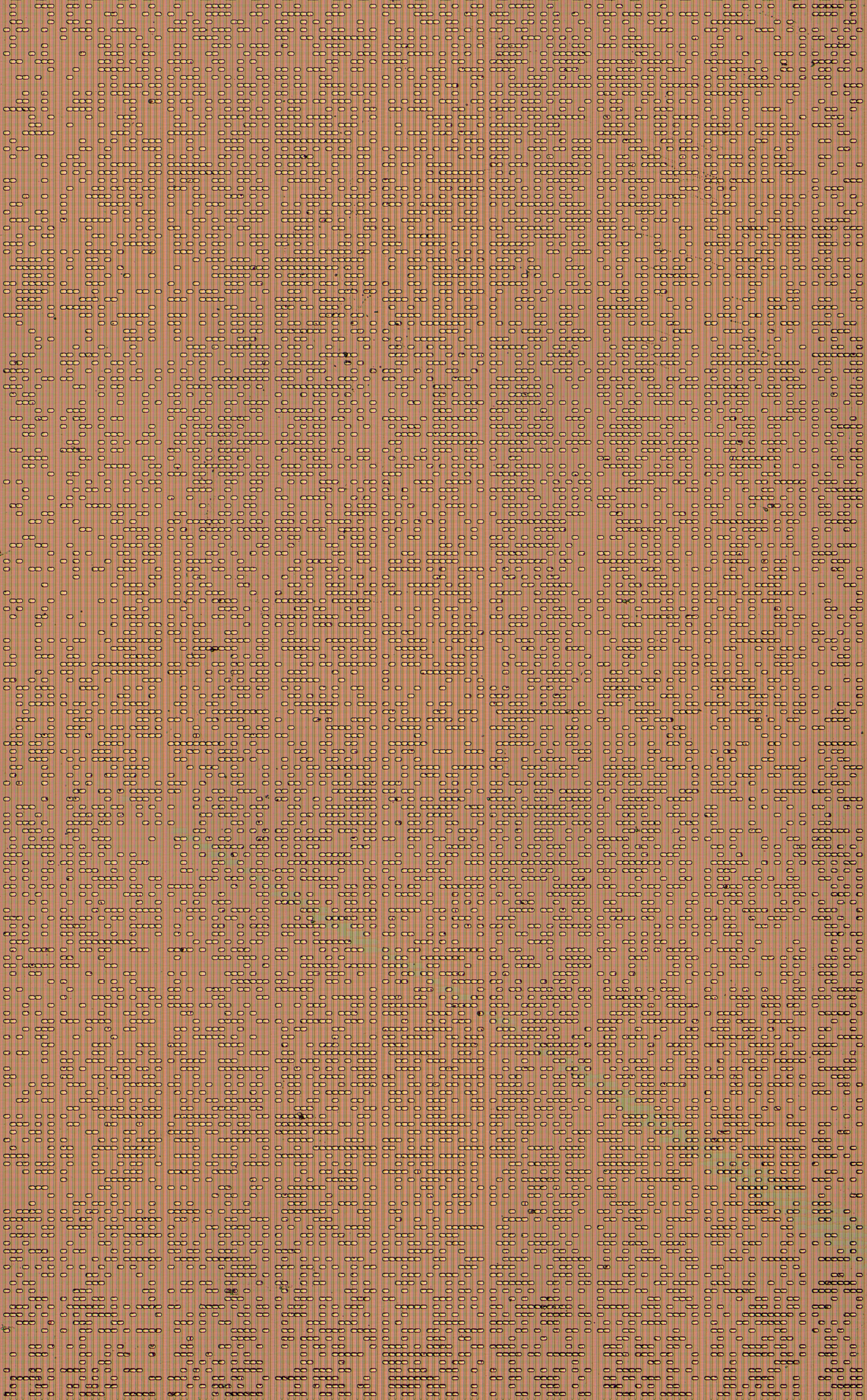

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1           K2         K3          K4       Beta       BA
S1     --           --         Up          --        --        --
S2     --           R          L           --        --        --
S3     --           D          --          --        --        --
S4   Attack        Pick        --          --        --        --
S5   Pause          --         --          --        --        --
GND    --           --         --          On        --        --
VDD    --           --         --          --       Off      Sound
