MC Hammer LCD game

MC Hammer used a Sharp SM-511 MCU (die ID N63)

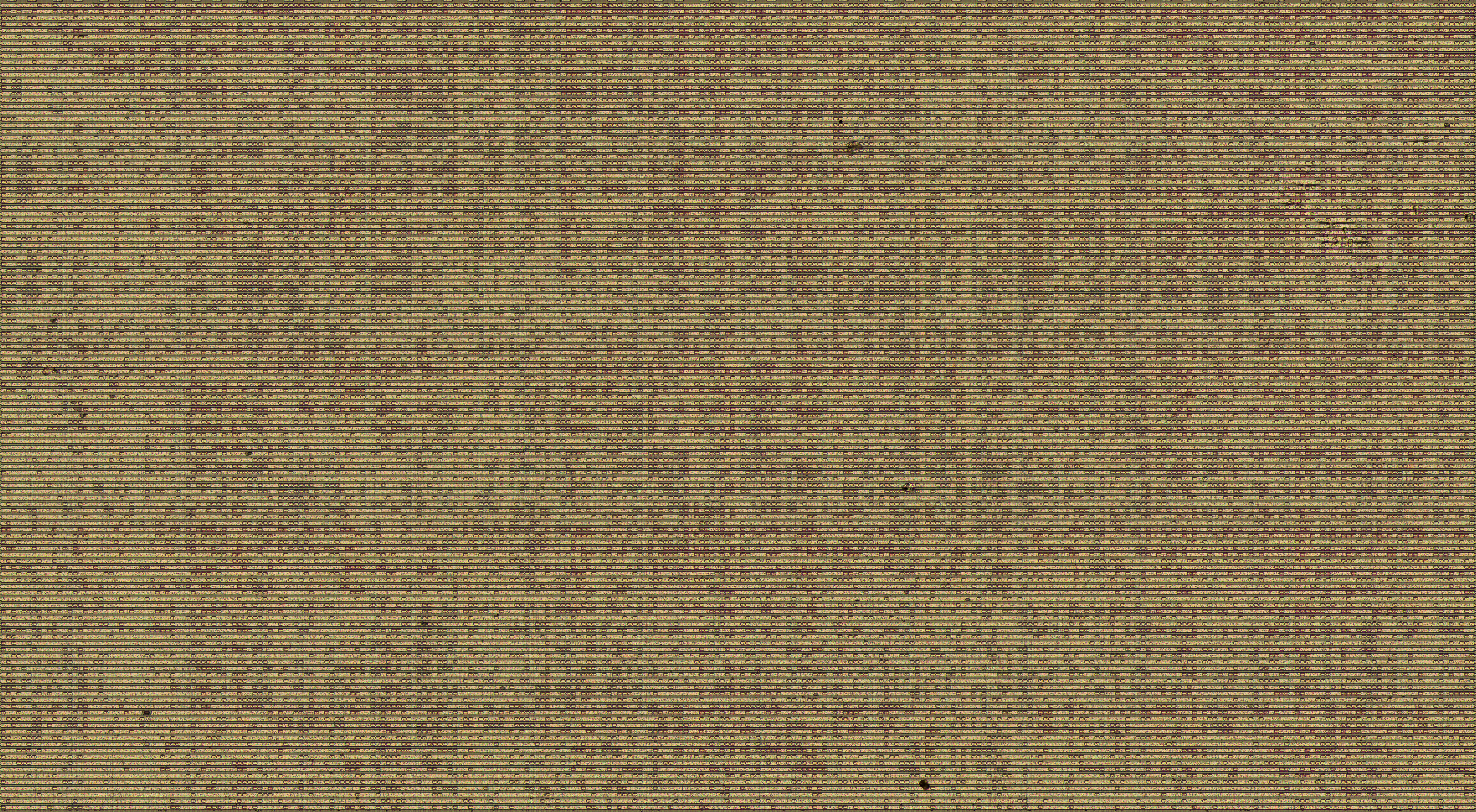

ROM array

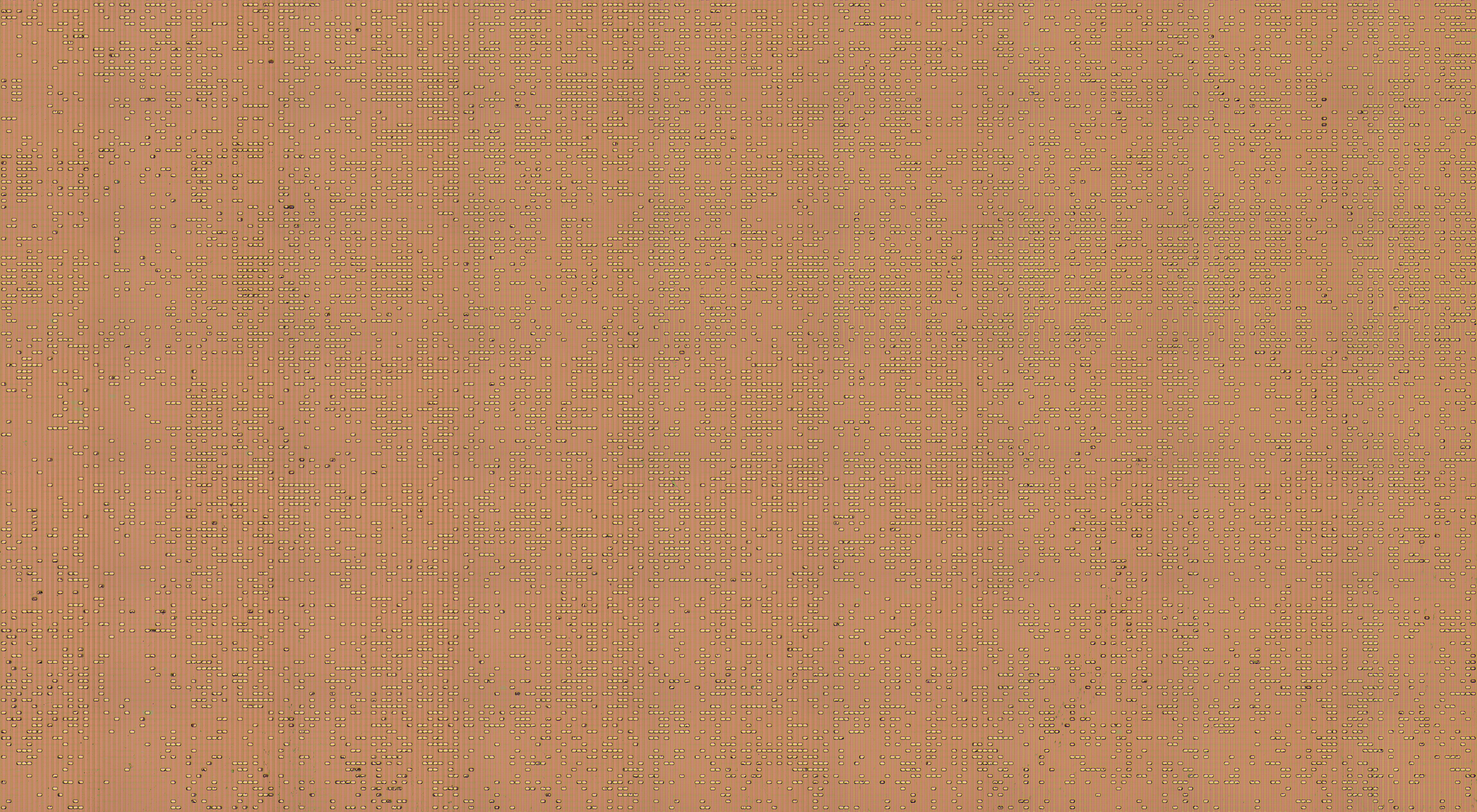

ROM array with top metal removed

raw ROM dump

ROM dump

raw ROM dump

ROM dump

melody ROM

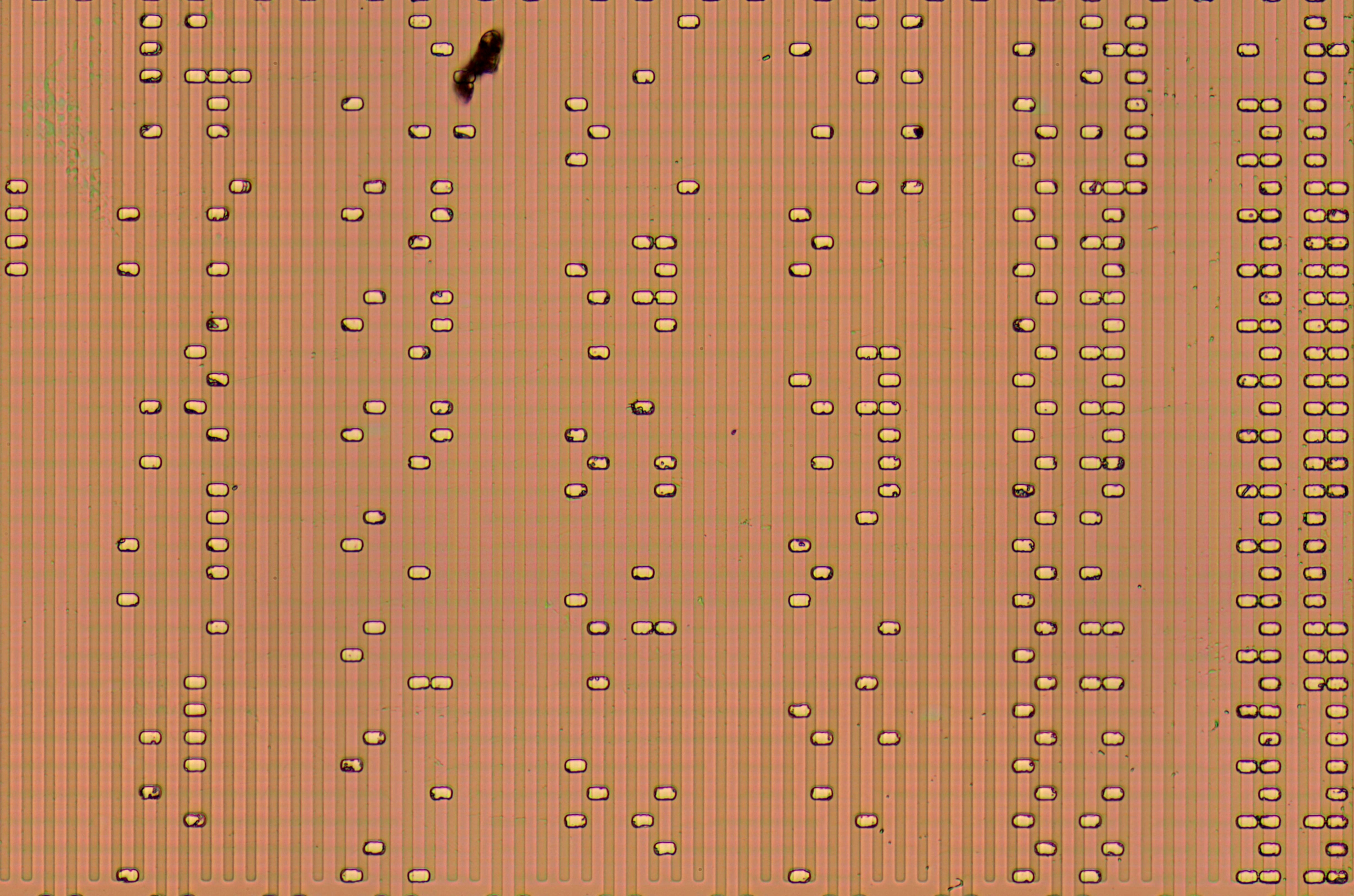

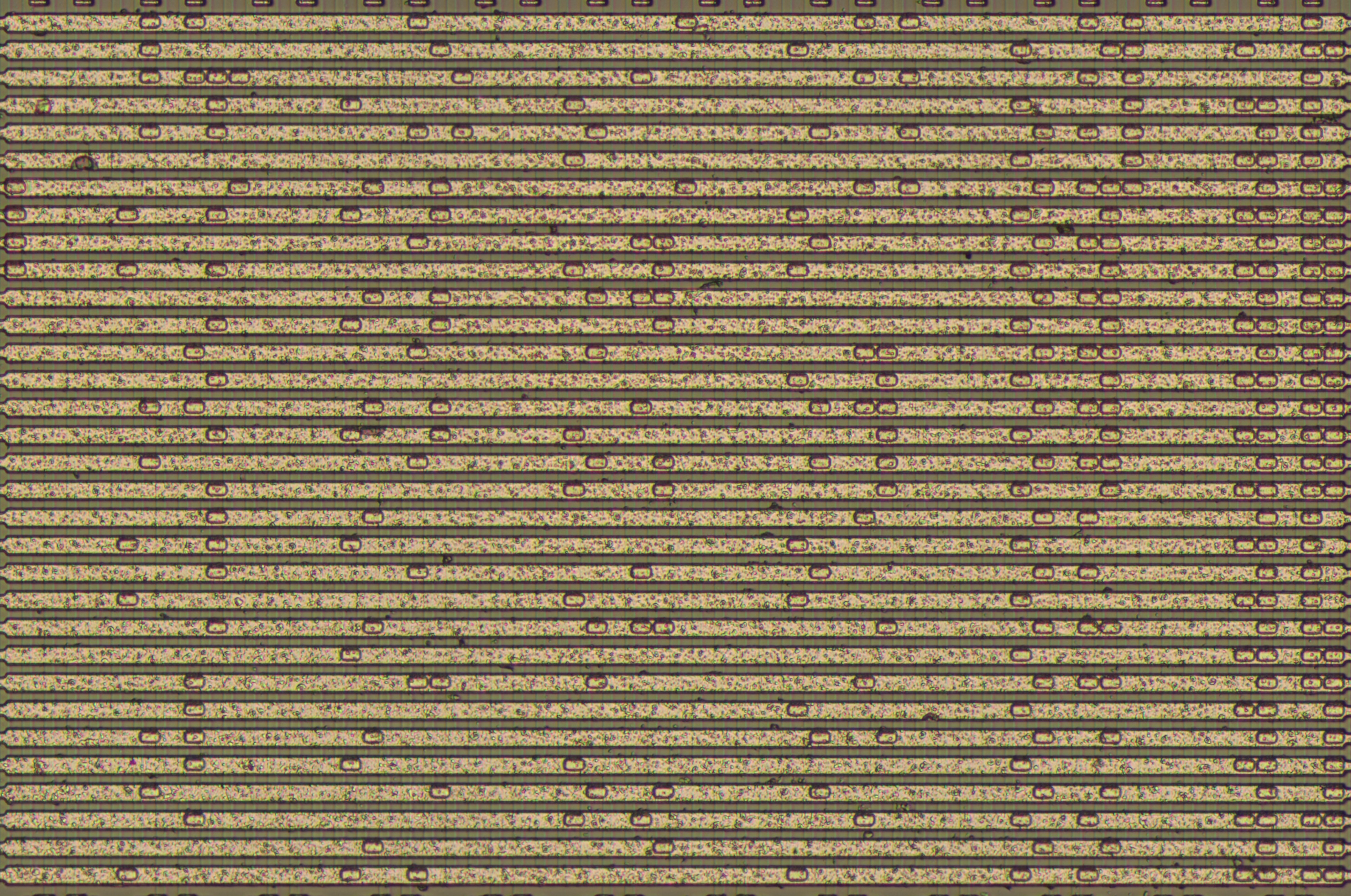

melody ROM with top metal removed

raw melody ROM dump

melody ROM dump


Buttons:
         K1             K2            K3        K4   Beta   BA
S1  Footwork Left       --            Up        --    --    --
S2  Footwork Right     Jump           --        --    --    --
S3      --          Leaps Down   Splits Right   --    --    --
S4      --              --       Splits Left    --    --    --
S5      --              --           Down       --    --    --
S6      --              --           Mode       --    --    --
GND     --              --            --        On    --    --
VDD     --              --            --        --   Off  Sound
