Lone Ranger LCD game

Lone Ranger used a Sharp SM-511 MCU (game # BH009, die ID 781)

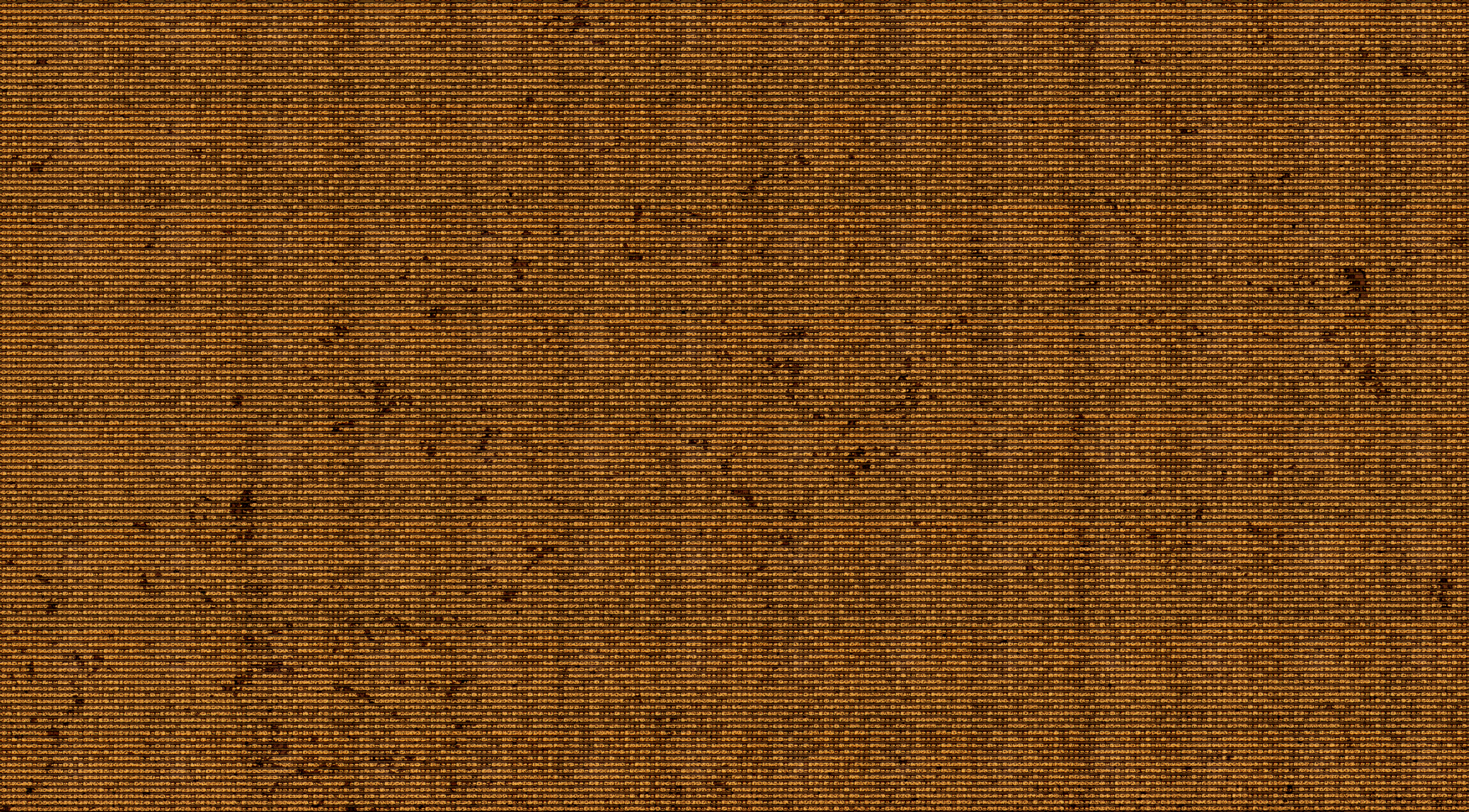

ROM array

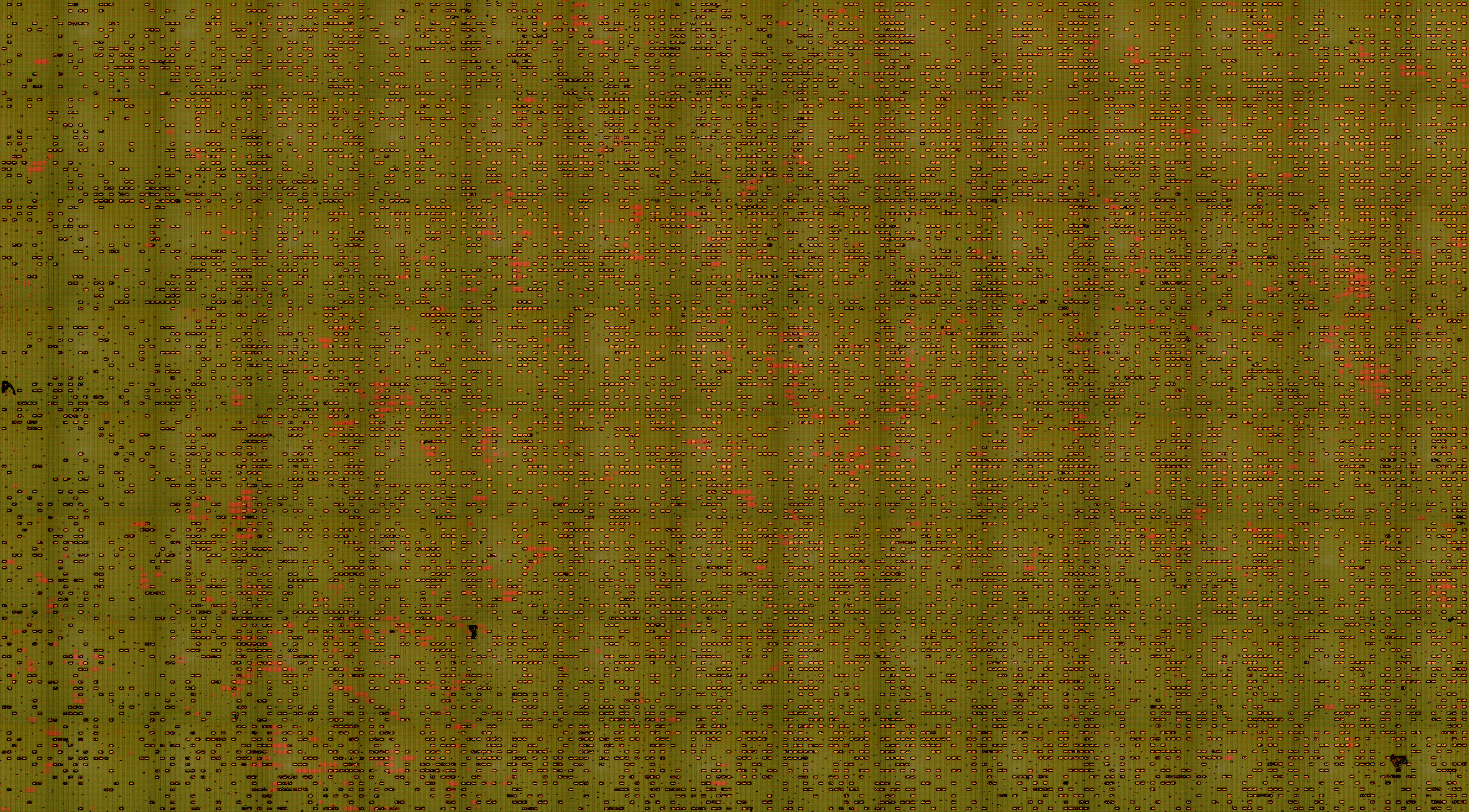

ROM array with top metal removed

raw ROM dump

ROM dump

melody ROM array with top metal removed

Melody raw ROM dump

Melody ROM dump

        K1         K2          K3        K4
S2     off       sound       pause    on/start
S3     left       fire         --      right
