Jurassic Park LCD game

Jurassic Park used a Sharp SM-510 MCU (die ID MF4)

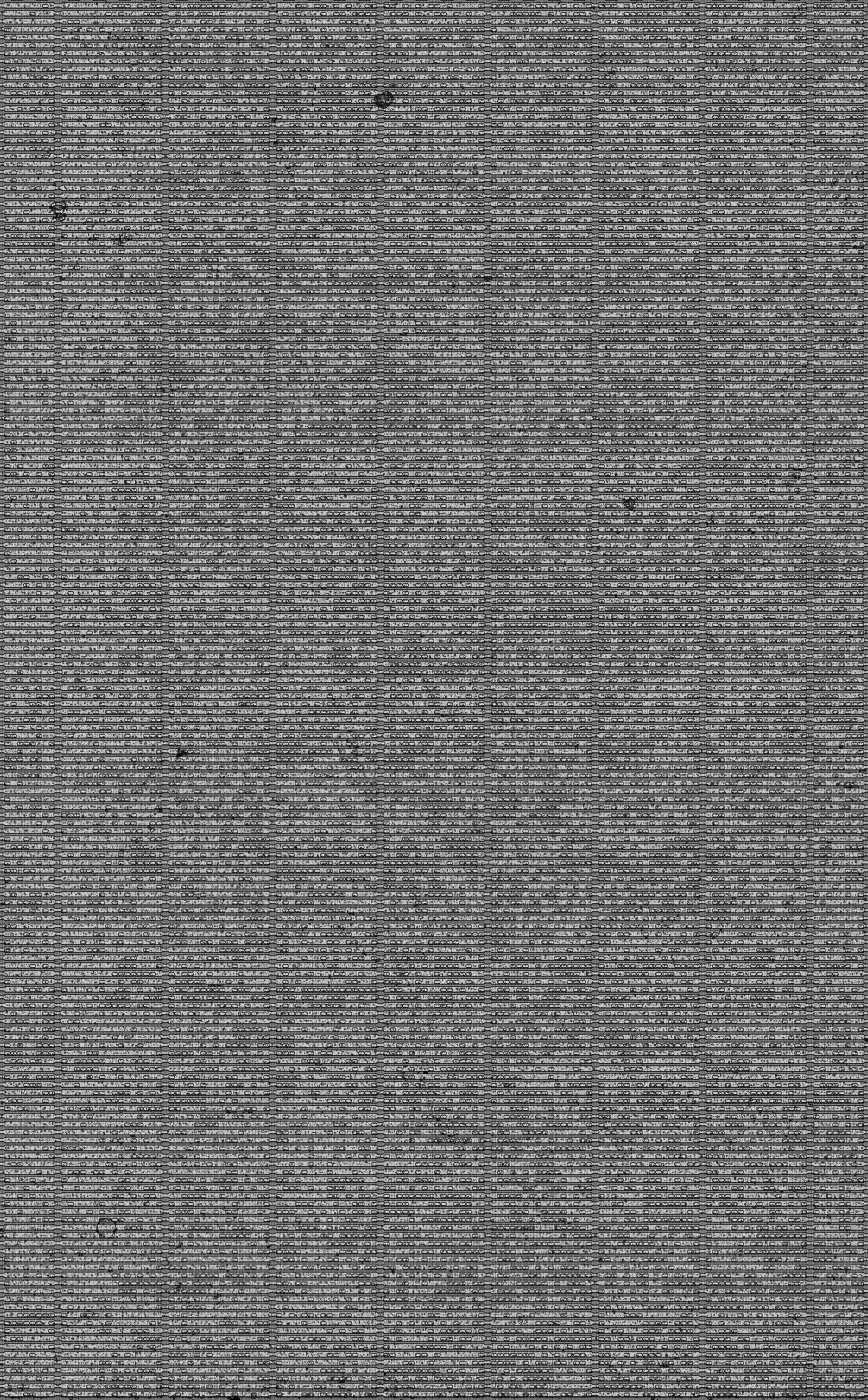

ROM array

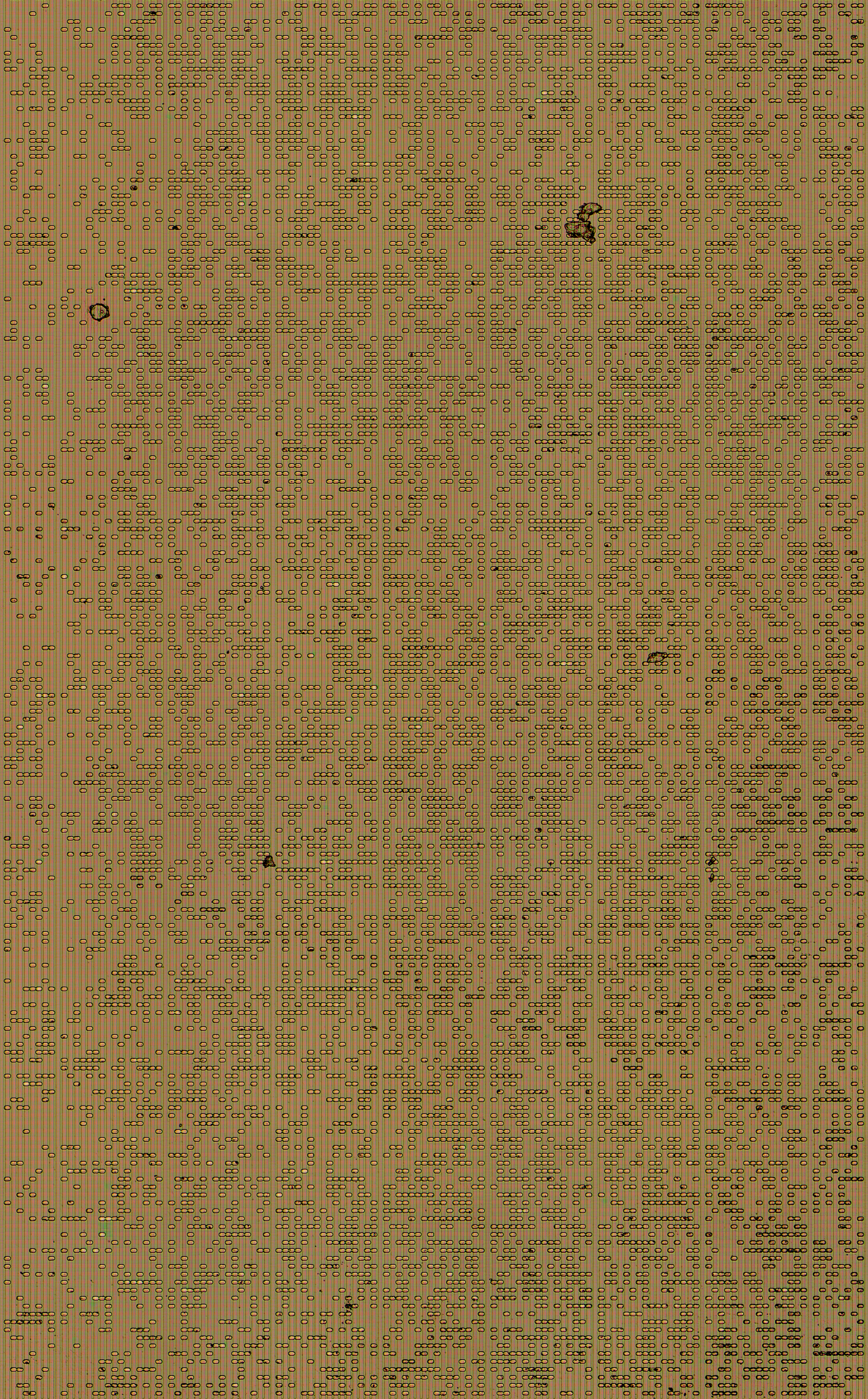

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1 Jump/Climb     --    Swing/Power      --        --        --
S2     --         R          L           --        --        --
S3     --      Forward       --          --        --        --
S4     --        Call        --          --        --        --
S5   Pause        --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
