Independence Day LCD game

Independence Day used a Sharp SM-510 MCU (die ID 1016)

ROM array

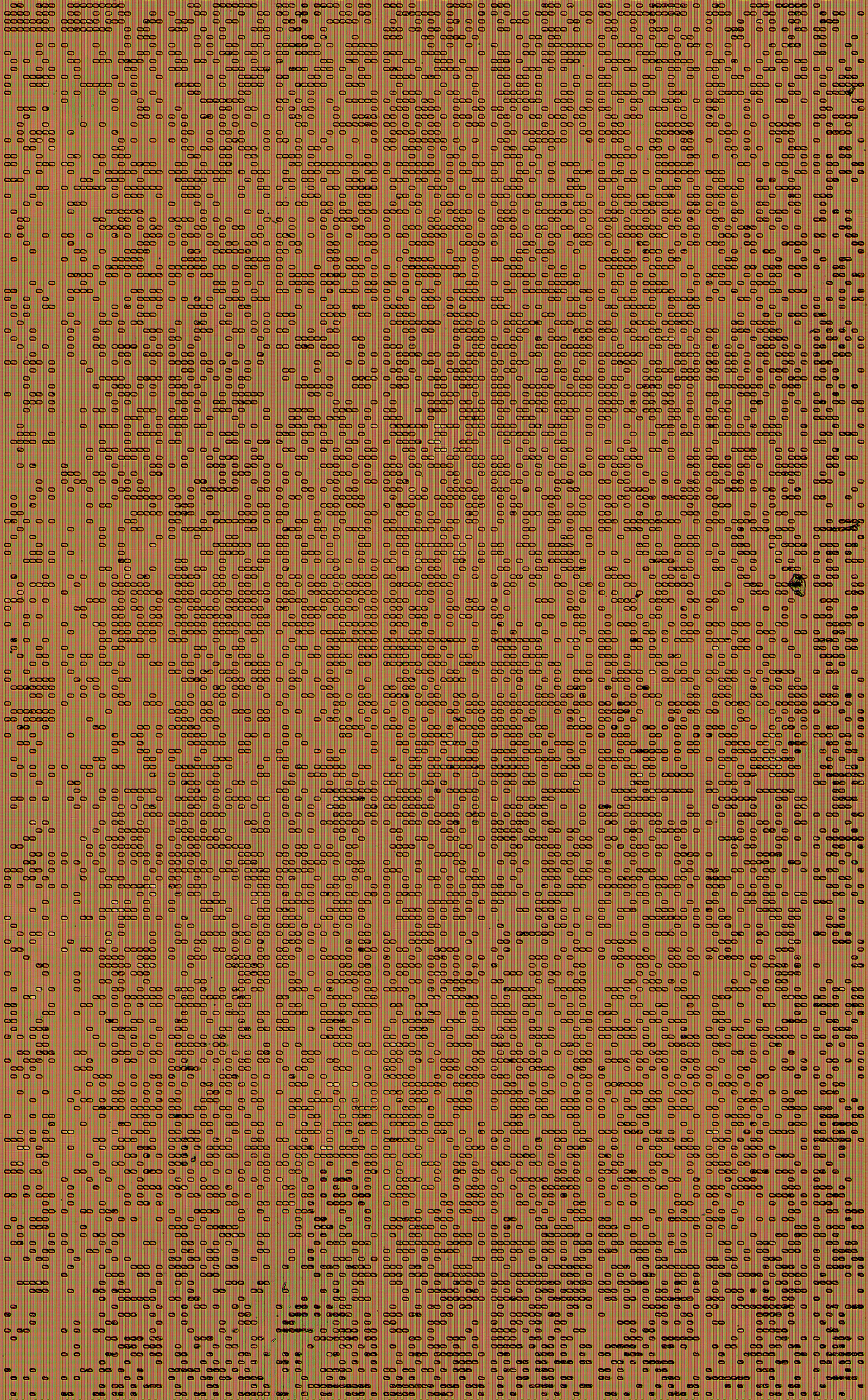

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1   Shield       --        Fire         --        --        --
S2     --         R          L           --        --        --
S3     --       Alert        --          --        --        --
S4     --      Velocity      --          --        --        --
S5   Pause        --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
