Double Dribble LCD game

Double Dribble used a Sharp SM-510 MCU (die ID 584)

ROM array

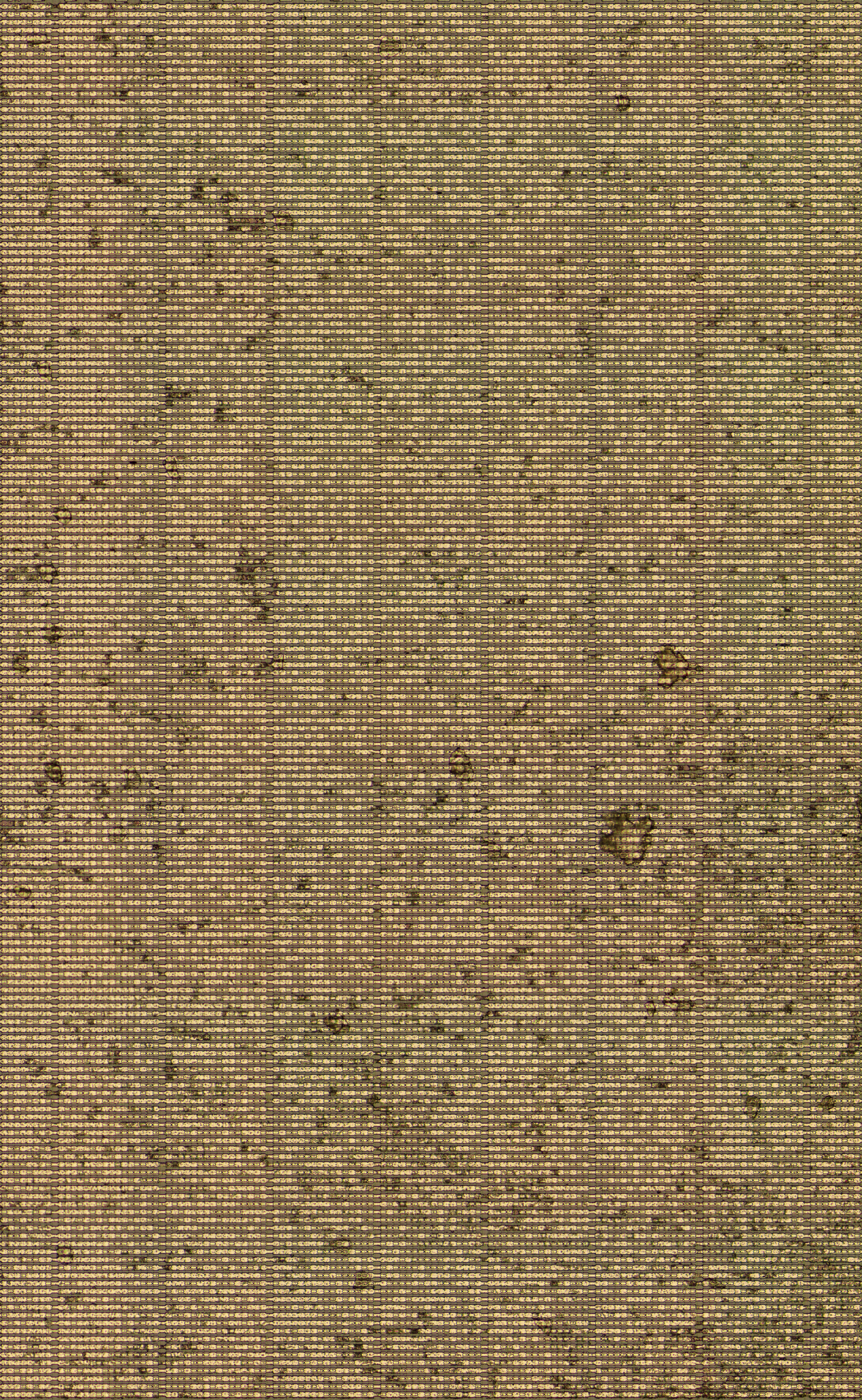

ROM array with top metal removed

raw ROM dump

ROM dump

        K1         K2          K3        K4
S1     left        up         down     right
S2    pause      sound        off      shoot
S3      on         --          --        --
