Dennis the Menace LCD game

Dennis the Menace used a Sharp SM-510 MCU (die ID MF9)

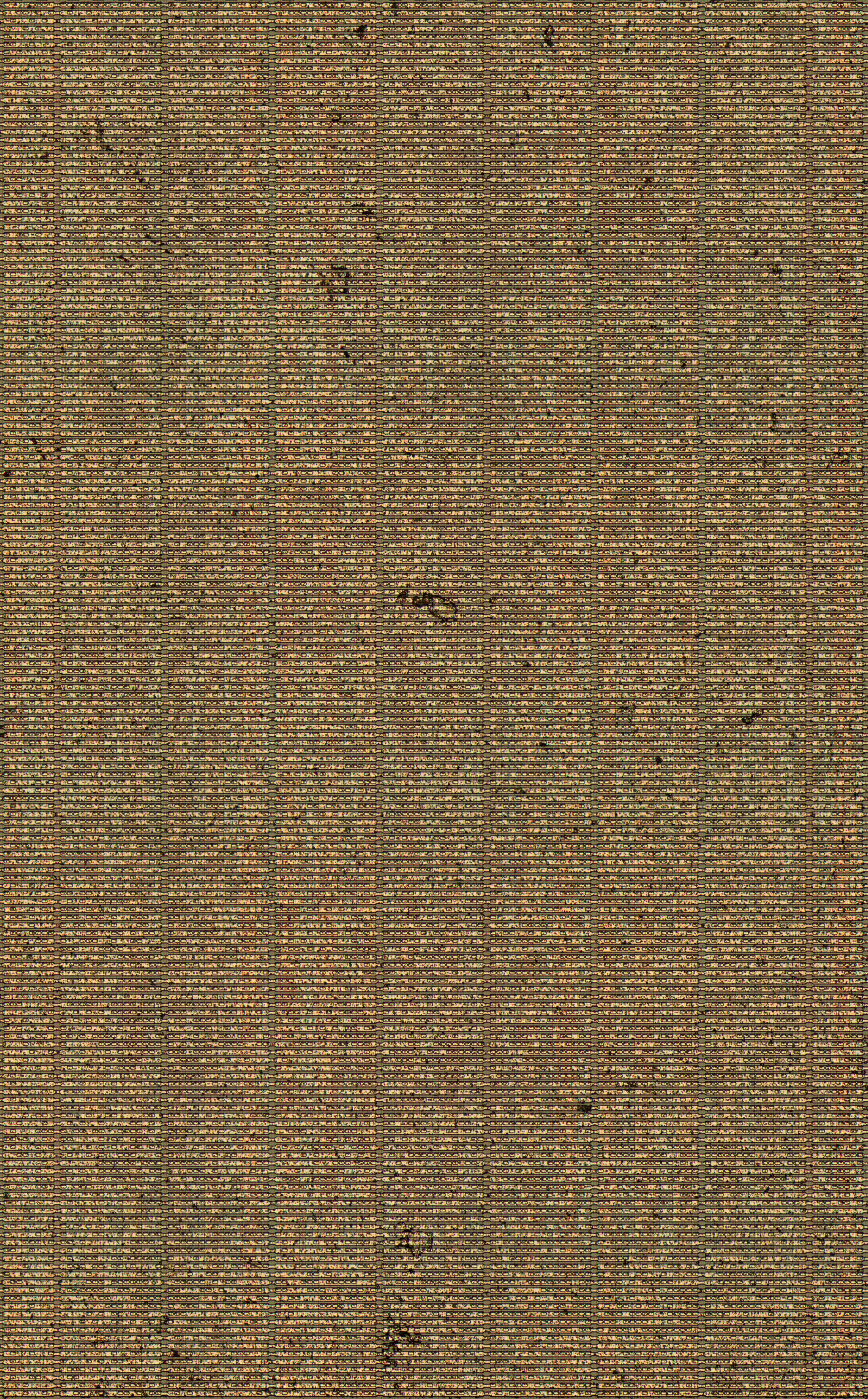

ROM array

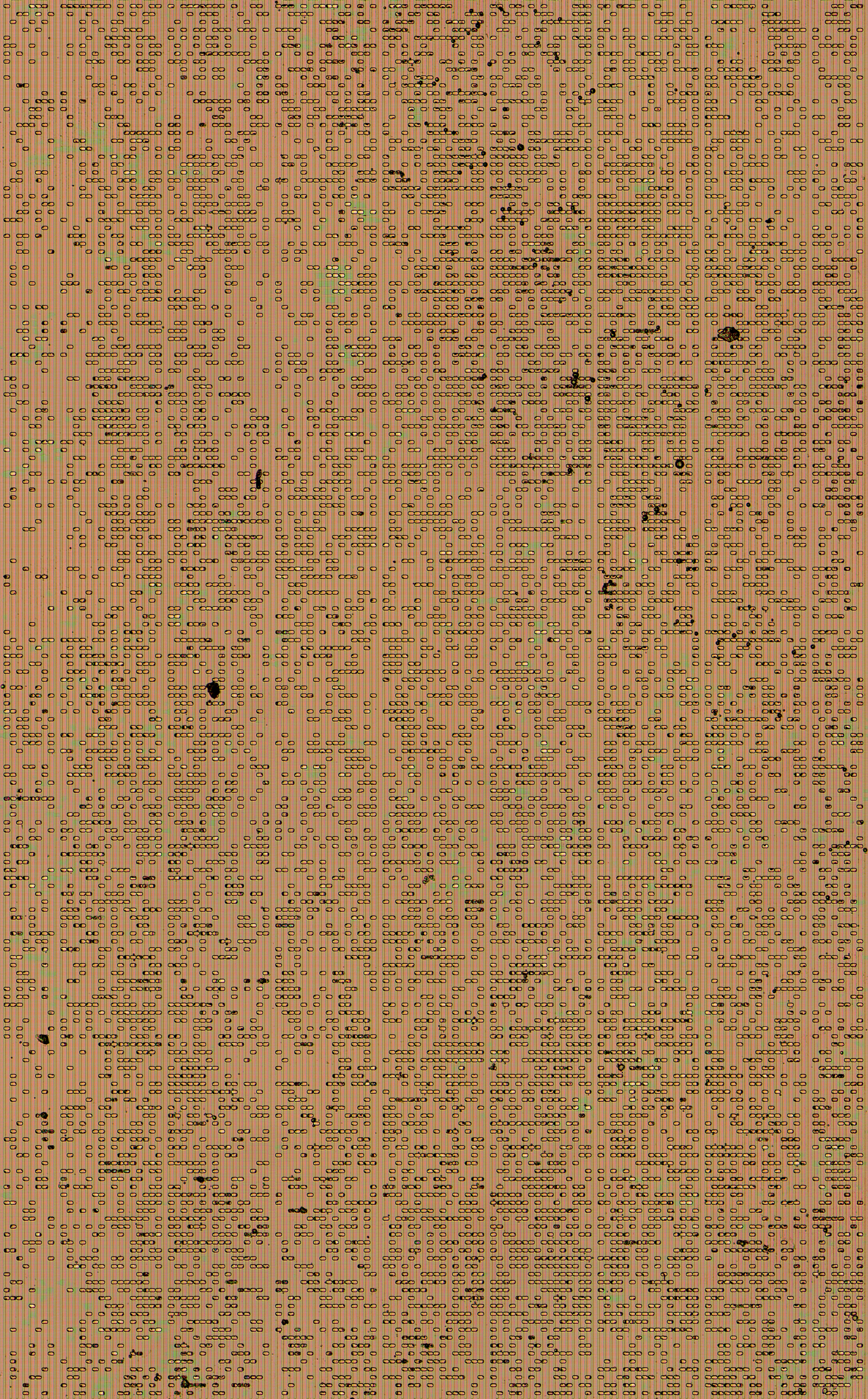

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1  Slingshot L   --         U           --        --        --
S2     --         R          L           --        --        --
S3     --         --         D           --        --        --
S4     --       Pick L       --          --        --        --
S5  Slingshot R Pick R       --          --        --        --
S6   Pause        --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
