Crash Test Dummies LCD game

Crash Test Dummies used a Sharp SM-510 MCU (die ID ME0)

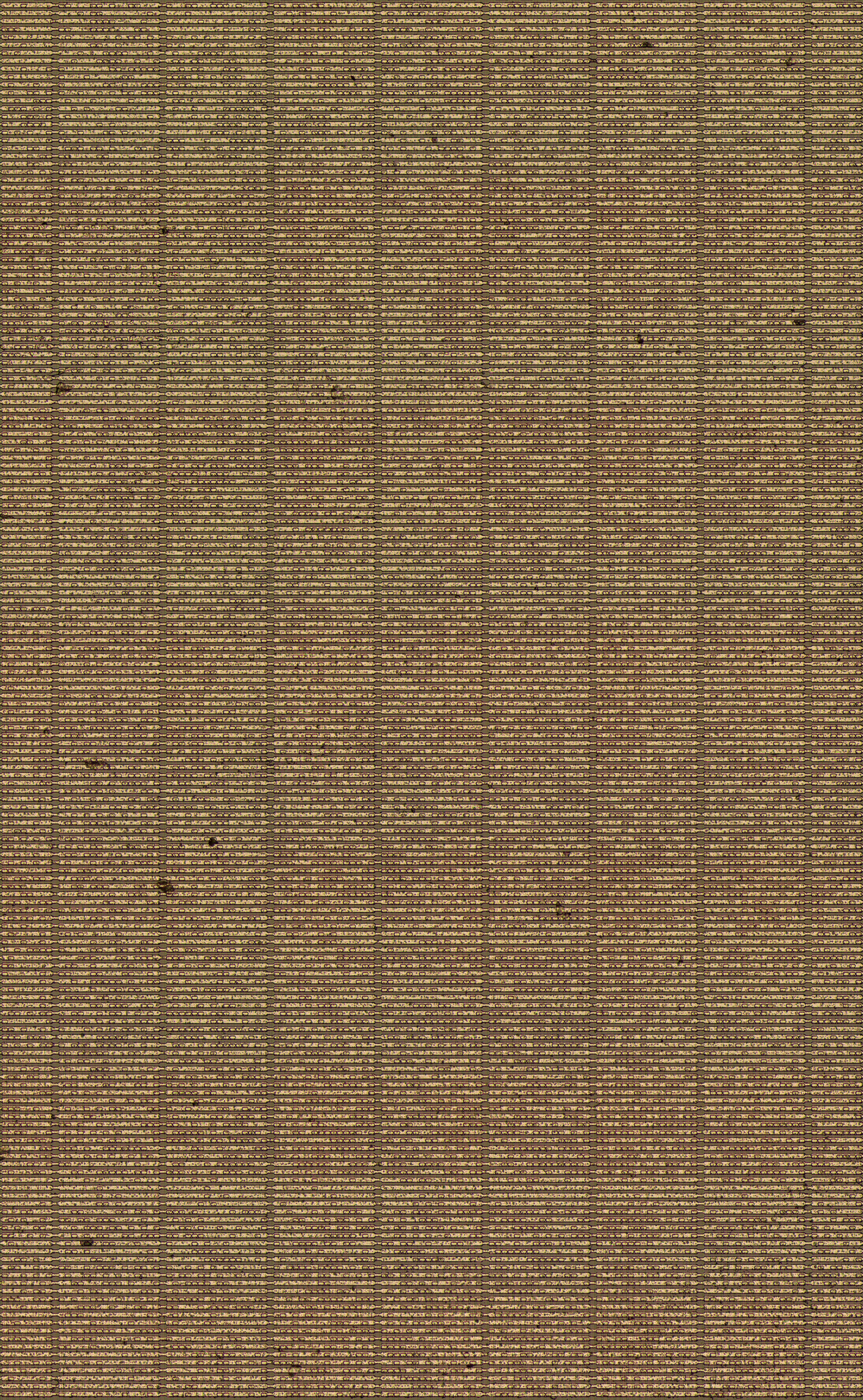

ROM array

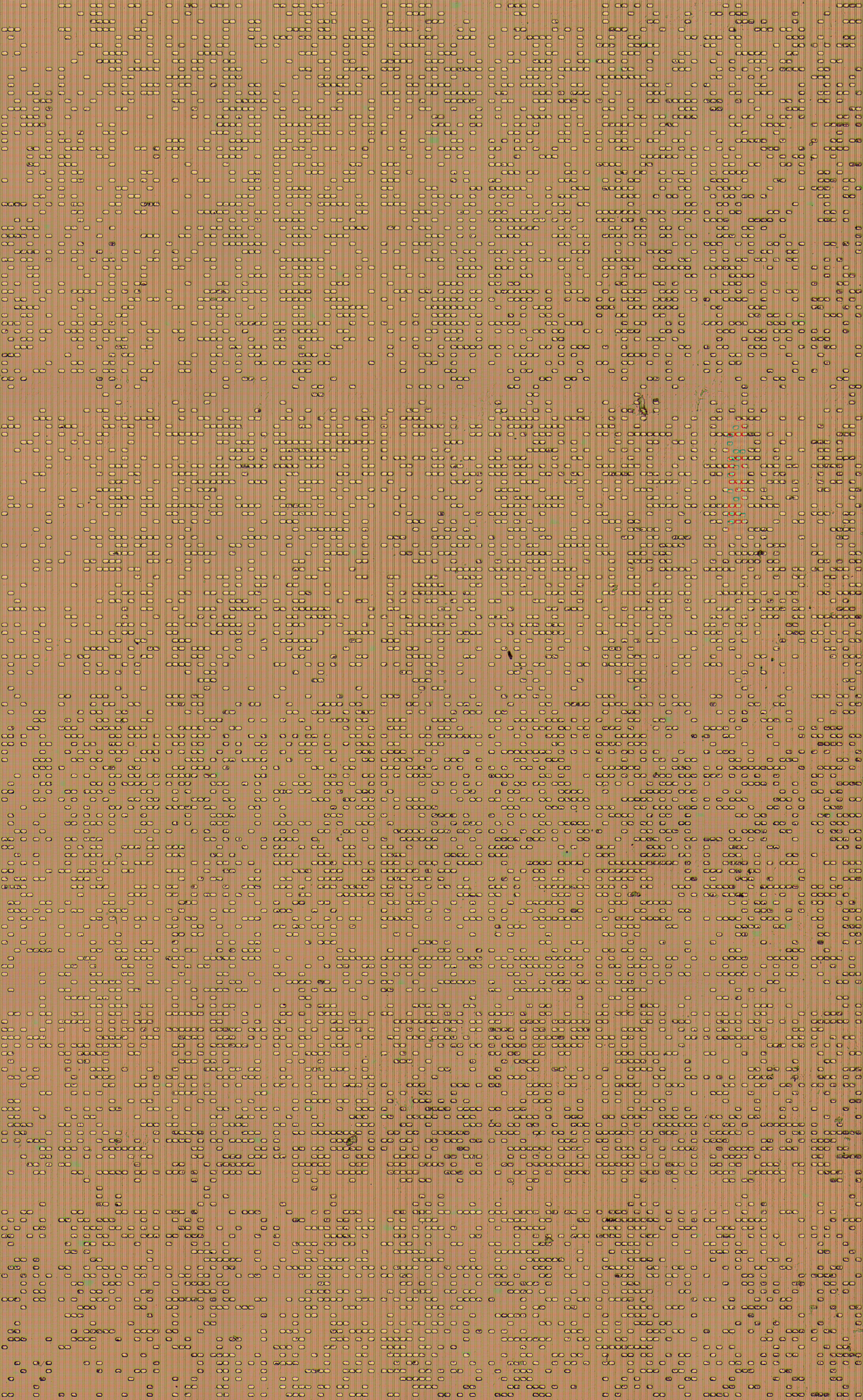

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1         K2         K3          K4       Beta       BA
S1     --         --         Up          --        --        --
S2     --       Crash      Brake         --        --        --
S3     --        Down        --          --        --        --
S4 Accelerate   Brake        --          --        --        --
S5    Pause       --         --          --        --        --
GND    --         --         --          On        --        --
VDD    --         --         --          --       Off      Sound
