Batman The Animated Series LCD game

Batman The Animated Series used a Sharp SM-511 MCU (die ID M81?)

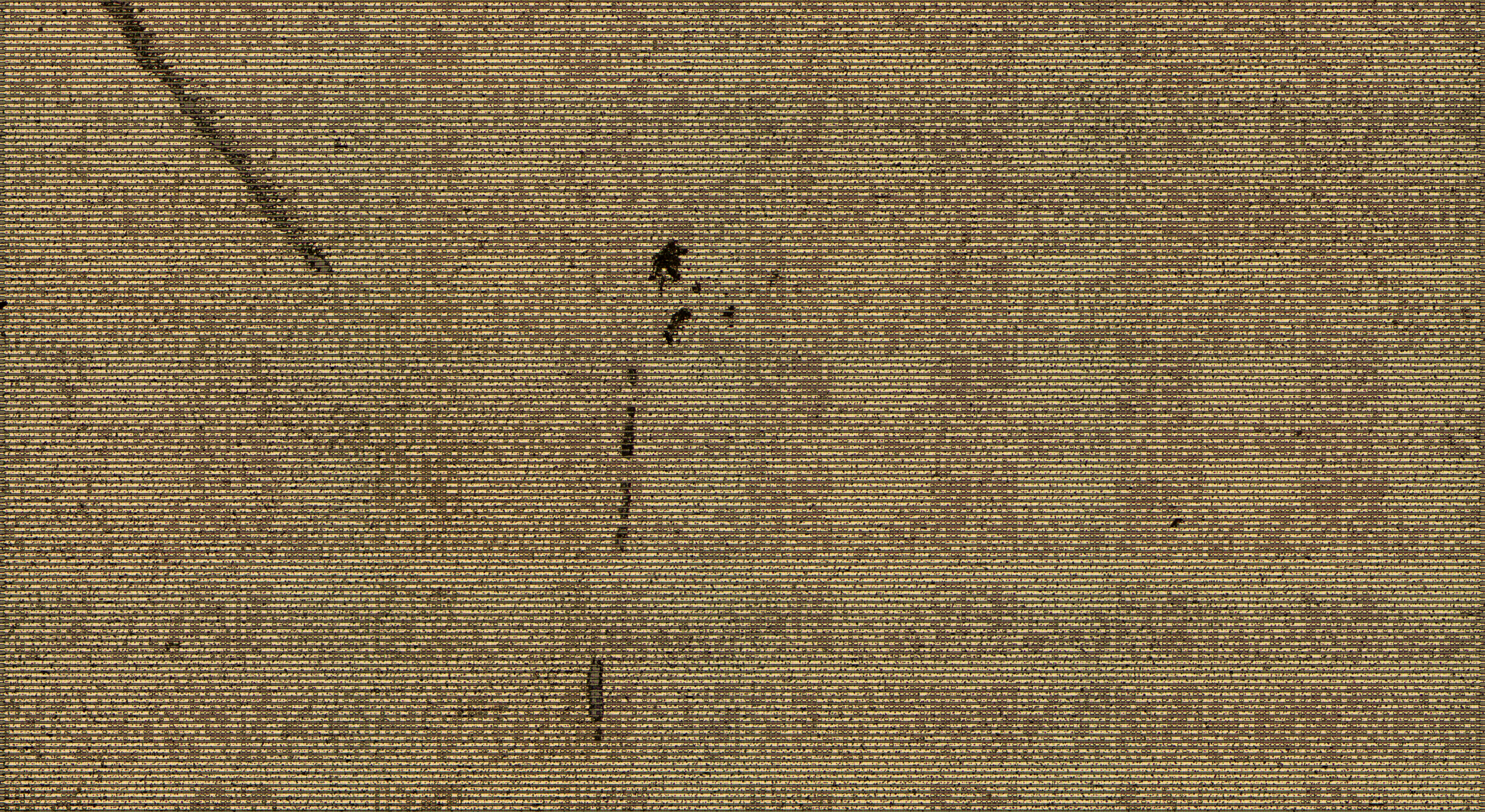

ROM array

raw ROM dump

electronic ROM dump

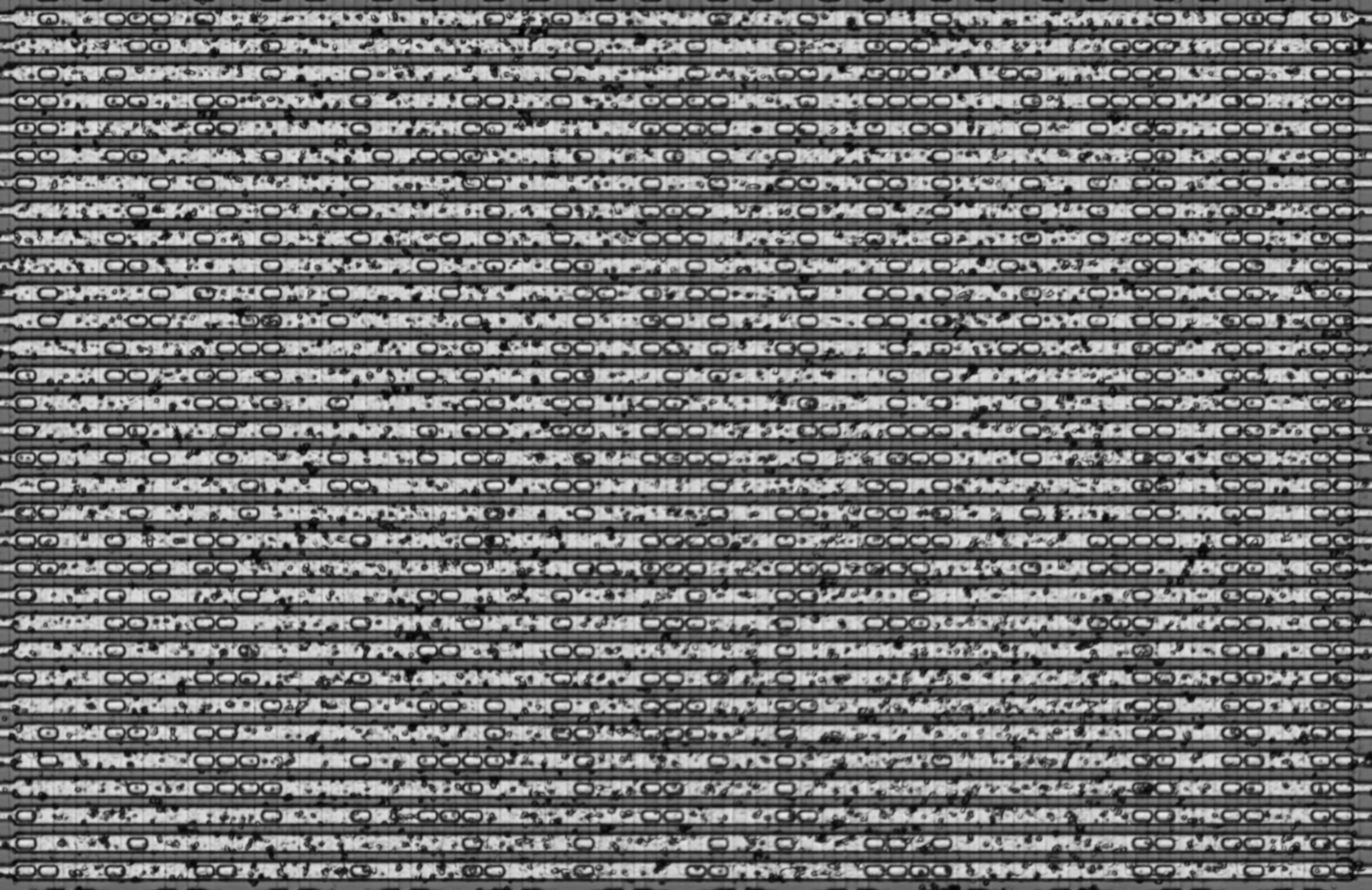

melody ROM array

raw melody ROM dump

melody ROM dump


Buttons:
       K1           K2         K3          K4       Beta       BA
S1     connected to piezo
S2     --           --        Jump         --        --        --
S3     --           --         --          --        --        --
S4     --          Fast        --          --        --        --
S5     --         Throw        --          --        --        --
S6     --           --         --          --        --        --
S7  Max Score       --         --          --        --        --
GND    --           --         --          On        --        --
VDD    --           --         --          --       Off      Sound
