Batman LCD game

Batman used a Sharp SM-510 MCU (die ID 597)

ROM array

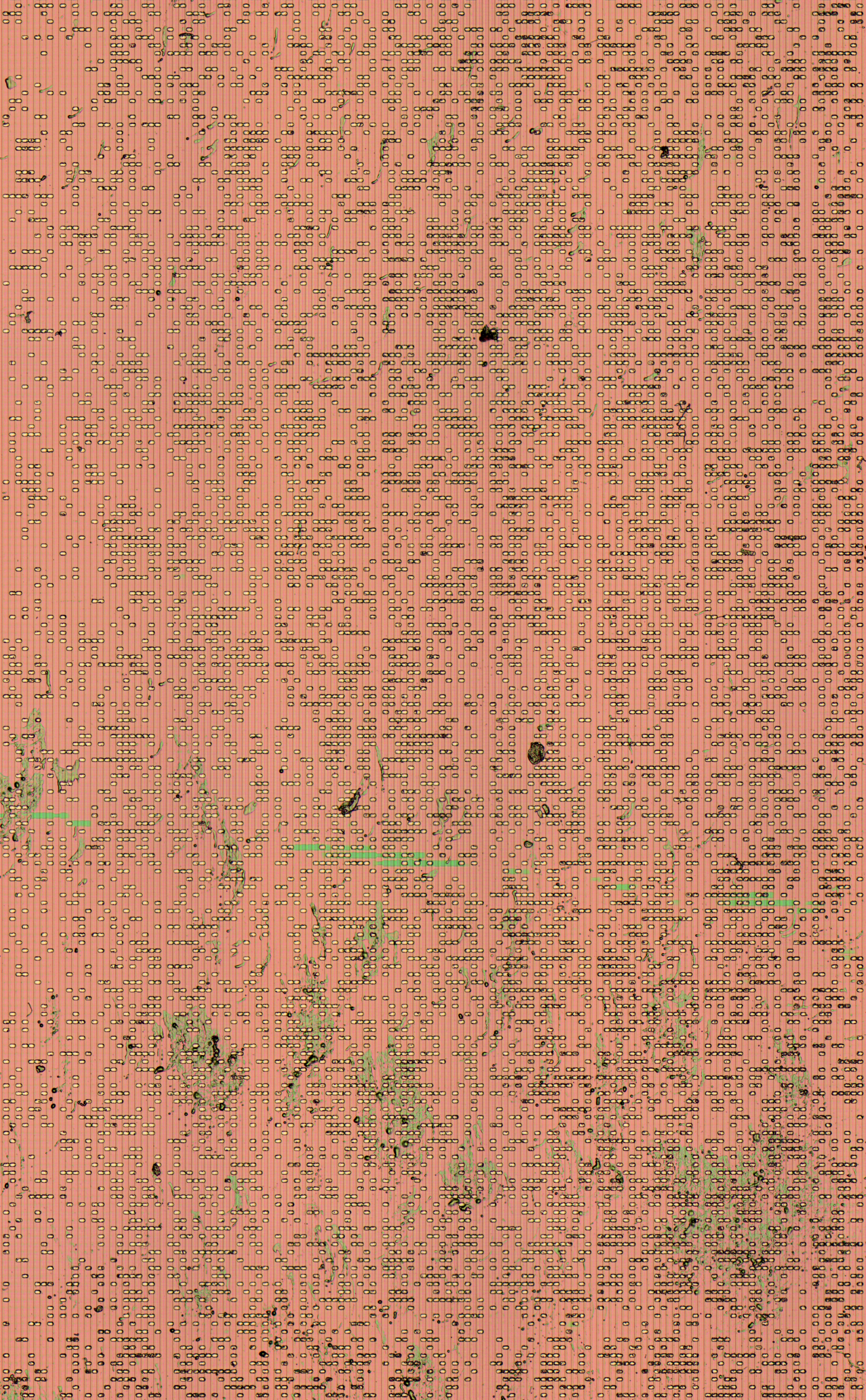

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
        K1         K2          K3        K4       Beta       BA
S1      --         --          Up        --        --        --
S2      --       Right         --        --        --        --
S3      --        Down         --        --        --        --
S4     Pick      Attack        --        --        --        --
S5   Max Score    --           --        --        --        --
GND     --         --          --        On        --        --
VDD     --         --          --        --       Off      Sound
